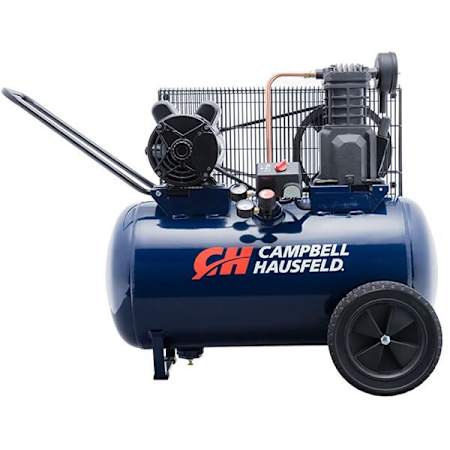

Campbell Hausfeld 2 HP 20 Gal 135 Max PSI Single-Stage Portable Electric (120, 240 Volt 1 Phase) Reciprocating Air Compressor
Model: VT6290|Item: bci5121382
$714.50
36 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Specifications:
- Certifications: CSA and UL
- Fuel Type: Electric
- Height: 30-1/2"
- Width: 21"
- Length: 37"
- Product Weight: 148 lbs
- Warranty: 1 Year Residential and 90 Day Commercial
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 20
Pump Specifications:
- Lubrication Type: Oil Lubricated
- CFM: 6
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 2 HP
- Amperage: 15, 7.5A
- dB Rating: 82
- Voltage: 120, 240V
- Voltage: 120, 240V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 5.5 |
Height | 30.5 in. |
Length | 37 in. |
Product Weight | 148 lbs. |
Width | 21 in. |
Dimensions and Measurements
CFM | 5.5 |
Height | 30.5 in. |
Length | 37 in. |
Product Weight | 148 lbs. |
Width | 21 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 6.5 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | No |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 20 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 6.5 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | No |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 20 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 15, 7.5 |
Decibels | 82 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 15, 7.5 |
Decibels | 82 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 120, 240 |
Warranty and Product Information
Certifications | CSA, UL |
Manufacturer Warranty | 1 Year Residential, 90 Day Commercial |
Warranty and Product Information
Certifications | CSA, UL |
Manufacturer Warranty | 1 Year Residential, 90 Day Commercial |
