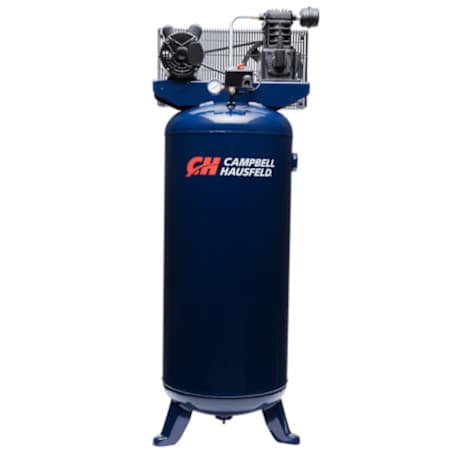

Campbell Hausfeld 3 HP 60 Gal 135 Max PSI Single-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: VT6195|Item: bci5120823
$1,008.56
81 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Cast Iron Twin Cylinder Pump
- Oil-lubricated for extended performance
- Up to 5,000 hours of life (based on B-10 bearing rating)
- Improved balance extends pump life & reduces noise
- Cogged Belt Drive Between Motor & Pump: Cogs provide more efficient power transfer with less slippage
- High Air Flow
- Powerful enough for home garage or automotive shop
- Works with a wide variety of air tools
- Quieter Operation: Compared to oil-lube aluminum pumps
- 10.2 CFM @ 90 PSI
- Powerful enough to run many air tools
- Tank rated to 135 PSI maximum
- Wider Tank Base: Increases pump/motor spacing for better cooling
- Commercial-Style Metal Belt Guard: More durable than plastic; allows belt to run cooler & last longer
- 60 Gallon Tank: Vertical tank saves space, provides easy access
Specifications:
- Fuel Type: Electric
- Height: 71"
- Width: 30"
- Length: 27-1/2"
- Product Weight: 246 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 10
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3 HP
- Amperage: 15A
- Voltage: 230V
- Voltage: 230V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 10.2 |
Height | 71 in. |
Length | 27.5 in. |
Product Weight | 246 lbs. |
Width | 30 in. |
Dimensions and Measurements
CFM | 10.2 |
Height | 71 in. |
Length | 27.5 in. |
Product Weight | 246 lbs. |
Width | 30 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 15 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 15 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
