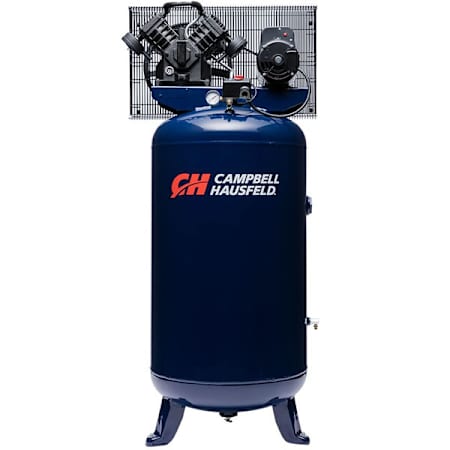

Campbell Hausfeld 5 HP 80 Gal 140 Max PSI Single-Stage Stationary Electric (208, 230 Volt) Reciprocating Air Compressor
Model: TQ3104|Item: bci2103029
$2,070.65
7 In Stock
Details
Product Information:
- Cast Iron 4 Cylinder Pump: Over 10,000 hours extended life based on B-10 bearing rating
- 840 RPM Pump Speed: Smooth running & quieter operation
- 5-HP 208-230 Volt Electric Motor With Overload Protection
- Operates on standard 208-230V single phase power
- No special motor starter is needed
- 140 PSI Maximum: Operates a wider range of tools with longer run times
- Delivers 16 CFM at 90 PSI: Easily runs high-demand air tools like sanders & grinders
- 80-Gallon ASME Code Tank: Assures safe operation
- ***Unit Does Not Ship With Oil***
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 80"
- Width: 42"
- Length: 31"
- Product Weight: 410 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 16
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 21A
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 16 |
Height | 80 in. |
Length | 31 in. |
Product Weight | 410 lbs. |
Width | 42 in. |
Dimensions and Measurements
CFM | 16 |
Height | 80 in. |
Length | 31 in. |
Product Weight | 410 lbs. |
Width | 42 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 21 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 140 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 21 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 140 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
