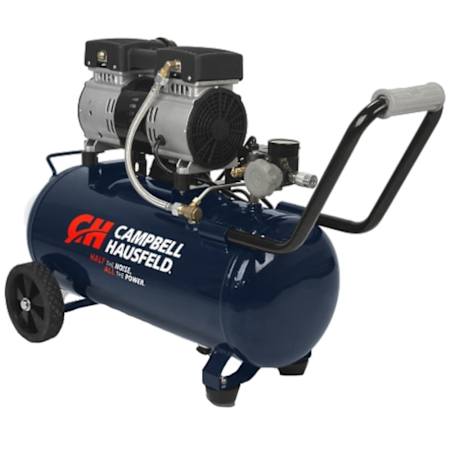

Campbell Hausfeld 1 HP 8 Gal 125 Max PSI Single-Stage Portable Electric (120 Volt) Reciprocating Air Compressor

Model: DC080500
|
Item: bci5120999

$276.78
718 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 4 to 5 business days
-
Return & Shipping Details

Details

Product Information:

  • Half The Noise, All The Power
    • 68 dBA is up to 50% quieter than conventional 1-HP compressors; about as loud as a normal conversation
    • Delivers 2.4 CFM at 90 PSI, 3.5 CFM at 40 PSI; ideal for tire inflation, hobby air brushing, finish nailing & stapling

  • Oil-Free Pump & Induction Motor
    • Dual piston-pump system provides superior motor performance with no pump maintenance
    • Key components last up to 4 times longer

  • 8 Gallon Air Tank
    • Produces up to 25% more air compared to other 1-HP units
    • Rated up to 125 PSI; comfort-grip handle for easy transport & storage

  • Top-View Controls
    • Dual gauges let you monitor tank and tool pressure at a glance
    • 1/4-inch air hose quick connect for speedy set up

  • 1 Year Factory Warranty For Consumer Use: Protects your investment; warranty is 90 days for commercial use

Specifications:

  • Fuel Type: Electric
  • Height: 23-5/8"
  • Width: 11-3/8"
  • Length: 26-13/16"
  • Product Weight: 70 lbs
  • Warranty: 1 Year Residential and 90 Day Commercial

Included Accessories:

  • Pressure Gauge Included
  • Filter Included

Tank Specifications:

  • Tank Outlet Size: 1/4"
  • Tank Size: 8

Pump Specifications:

  • Lubrication Type: Oil Free
  • CFM: 2
  • Drive Type: Direct Drive

Engine and Motor Specifications:

  • Horsepower: 1 HP
  • Amperage: 7A
  • dB Rating: 68
  • Voltage: 120V
  • Voltage: 120V
Additional Campbell Hausfeld Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

CFM
2.4
Height
23.6 in.
Length
26.8 in.
Product Weight
70 lbs.
Width
11.4 in.

Dimensions and Measurements

CFM
2.4
Height
23.6 in.
Length
26.8 in.
Product Weight
70 lbs.
Width
11.4 in.

Included Components

Filter Included
Yes

Included Components

Filter Included
Yes

Characteristics and Features

After Cooler Included
No
Air Dryer Included
No
CFM @ 40 PSI
3.5 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
No
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
8
Tank Type
Hot Dog

Characteristics and Features

After Cooler Included
No
Air Dryer Included
No
CFM @ 40 PSI
3.5 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
No
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
8
Tank Type
Hot Dog

Electrical and Operational Information

Amperage
7
Decibels
68
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Entry
Horsepower
1
Maximum Operating Pressure (PSI)
125
Stages
Single-Stage
Voltage
120

Electrical and Operational Information

Amperage
7
Decibels
68
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Entry
Horsepower
1
Maximum Operating Pressure (PSI)
125
Stages
Single-Stage
Voltage
120

Warranty and Product Information

Manufacturer Warranty
1 Year Residential, 90 Day Commercial

Warranty and Product Information

Manufacturer Warranty
1 Year Residential, 90 Day Commercial
