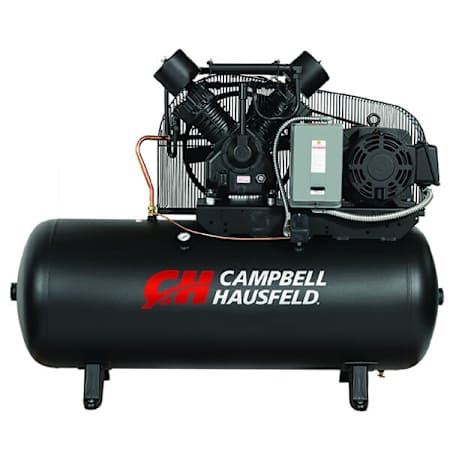

Campbell Hausfeld 15 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Starter

Product Information:

• Rugged Cast Iron Oil Lubricated Two Stage Pump: Made for heavy duty commercial & industrial applications


• Delivers Up To 15,000+ Hours Of Pump Life
  • Based on B-10 bearing rating
  • Durable stainless steel valves & ductile iron crankshaft
  • Reliable precision balanced flywheel & low pump RPM


• 15 Horsepower Tri-Voltage NEMA Motor
  • Totally enclosed metal belt guard
  • Magnetic starter factory wired and installed


• 120 Gallon ASME Code Tank: Certified to 200 PSI maximum pressure for safe operation


• Exceptional 3 Year Warranty: Rugged enough for fabrication & repair shops & industrial use


• 175 Maximum PSI: Operates a wider range of tools & provides longer run time


• Limited Manufacturer Warranty: 1-yr on compressor and 3-yr on pump & air receiver

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 56"
• Width: 78"
• Length: 29-1/2"
• Product Weight: 908 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Voltage: 208V
• Voltage: 208V
