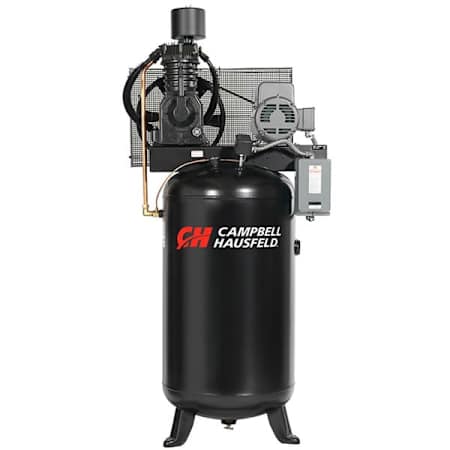

Campbell Hausfeld 7.5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor
Model: CE7001|Item: bci5121076
$2,913.00
4 In Stock
Details
Product Information:
- Rugged Cast Iron Oil Lubricated Two Stage Pump: Made for heavy duty commercial & industrial applications
- Delivers Up To 10,000+ Hours Of Pump Life: Based on B-10 bearing rating
- 7.5 Horsepower NEMA Motor
- Magnetic starter included
- Motor includes thermal overload protection
- 80 Gallon ASME Code Tank: Certified to 200 PSI maximum pressure for safe operation
- 3-Year Limited Manufacturer Warranty: Durable and reliable for fabrication & repair shops, etc.
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 83"
- Width: 45"
- Length: 35"
- Product Weight: 540 lbs
- Warranty: 3 Year Commercial and 3 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 25
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Voltage: 208V
- Voltage: 208V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 24.5 |
Height | 83 in. |
Length | 35 in. |
Product Weight | 540 lbs. |
Width | 45 in. |
Dimensions and Measurements
CFM | 24.5 |
Height | 83 in. |
Length | 35 in. |
Product Weight | 540 lbs. |
Width | 45 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
