California Air Tools

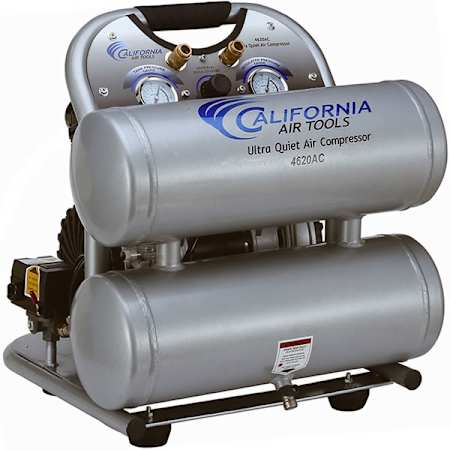

California Air Tools 2 HP 4.6 Gal 125 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor N/A
California Air Tools 2 HP 4.6 Gal 125 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor N/A
Alternate Image
Alternate Image
Alternate Image

California Air Tools 2 HP 4.6 Gal 125 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor

Model: 4620AC
|
Item: bci5120568

$406.25
100 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 2 to 3 business days
-
Return & Shipping Details

Details

Product Information:

  • Ultra Quiet & Dependable Portable Air Compressor
    • 70 dBA is ideal for indoor use where noise is an issue
    • Designed to be one of the quietest air compressors in the industry

  • Oil-Free Dual Piston Pump System
    • 6.40 CFM @ 40 PSI
    • Works in a variety of temperatures and uneven terrains
    • 3000+ hour life cycle before wear; comparable units are 500 hours or less

  • Powerful 2-HP SP Series 110V 1-Phase Motor
    • Low 1680 RPM creates less noise and wear
    • Air filters included for extra protection against dust and dirt

  • Thermal Overload Protector & Easy Start Valve
    • Protects motor from overheating; 14 amp draw
    • Valve releases a small amount of air for no-load starts that use fewer amps

  • Two 2.3 Gallon Aluminum Rust-Free Air Tanks (4.6 Gallon Total)
    • Lightweight and easy to transport and store at only 65 pounds
    • Manual tank drain for routine draining prevents air contamination

  • Designed For Increased Duty Cycles & Run Times
    • Time to fill tank from empty to full - 60 Seconds
    • Recovery time from 95 PSI to 125 PSI - 20 Seconds

  • Top Mounted Controls
    • Dual gauges so you can check tank and tool pressure at a glance
    • Two 1/4" air outlets with quick connectors for fast tool changes

Specifications:

  • Certifications: UL
  • Fuel Type: Electric
  • Height: 19-11/16"
  • Width: 16-11/16"
  • Length: 19-1/8"
  • Product Weight: 65 lbs
  • Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

  • Pressure Gauge Included
  • Filter Included

Tank Specifications:

  • Tank Outlet Size: 1/4"
  • Tank Size: 4.6

Pump Specifications:

  • Lubrication Type: Oil Free
  • CFM: 5
  • Drive Type: Direct Drive

Engine and Motor Specifications:

  • Horsepower: 2 HP
  • Amperage: 14A
  • dB Rating: 70
  • Voltage: 110V
  • Voltage: 110V
Additional California Air Tools Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

CFM
5.3
Height
19.7 in.
Length
19.1 in.
Product Weight
65 lbs.
Width
16.7 in.

Dimensions and Measurements

CFM
5.3
Height
19.7 in.
Length
19.1 in.
Product Weight
65 lbs.
Width
16.7 in.

Included Components

Filter Included
Yes

Included Components

Filter Included
Yes

Characteristics and Features

Air Dryer Included
No
CFM @ 40 PSI
6.4 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
No
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
4.6
Tank Type
Twin-Stack

Characteristics and Features

Air Dryer Included
No
CFM @ 40 PSI
6.4 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
No
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
4.6
Tank Type
Twin-Stack

Electrical and Operational Information

Amperage
14
Decibels
70
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Commercial
Horsepower
2
Maximum Operating Pressure (PSI)
125
Stages
Single-Stage
Voltage
110

Electrical and Operational Information

Amperage
14
Decibels
70
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Commercial
Horsepower
2
Maximum Operating Pressure (PSI)
125
Stages
Single-Stage
Voltage
110

Warranty and Product Information

Certifications
UL
Manufacturer Warranty
1 Year Commercial, 1 Year Residential

Warranty and Product Information

Certifications
UL
Manufacturer Warranty
1 Year Commercial, 1 Year Residential
