California Air Tools

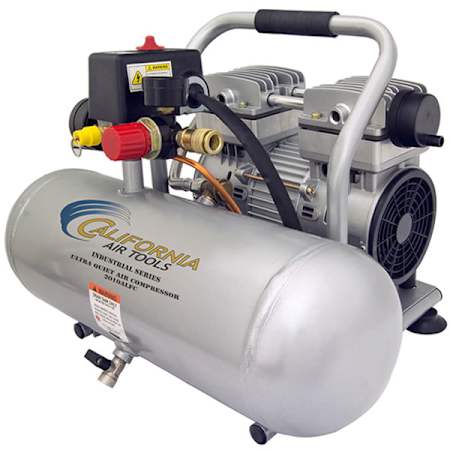

California Air Tools 1 HP 2 Gal 120 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor (Industrial Series) N/A
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
California Air Tools 1 HP 2 Gal 120 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor (Industrial Series) N/A
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image

California Air Tools 1 HP 2 Gal 120 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor (Industrial Series)

Model: CAT-2010ALFC
|
Item: bci5120506

$406.00
40 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 2 to 3 business days
-
Return & Shipping Details

Details

Product Information:

  • Ultra-Quiet & Dependable Portable Air Compressor
    • 60 dBA is ideal for indoor use where noise is an issue
    • Designed to be one of the quietest air compressors in the industry

  • Powerful Heavy-Duty 1-HP (Running) Motor (2-HP Peak)
    • Operates at only 1400 RPM creating less noise and less wear
    • Includes air filter to reduce dirt and dust in the system

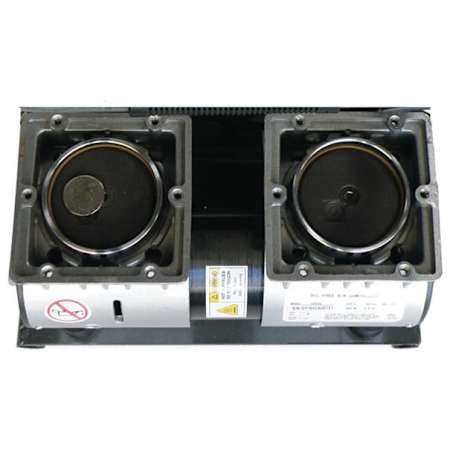

  • Oil-Free MP100LF Dual Piston Pump System
    • Works in a variety of temperatures and uneven terrains
    • 4000+ hour life cycle before wear; Produces 25% more air compared to other 1-HP compressors

  • Designed For Increased Duty Cycles & Run Times
    • Time to fill tank from empty to full - 40 Seconds
    • Recovery time from 90 PSI to 120 PSI - 15 Seconds

  • Thermal Overload Protector
    • Protects the motor from overheating
    • 7.6 low amp draw works on most 110V household outlets

  • 2-Gallon Rust-Free Aluminum Air Tank
    • Easy to transport and store at only 35 pounds

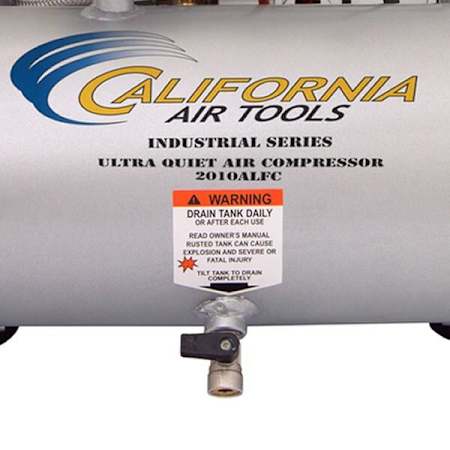

    • Manual tank drain for routine draining prevents air contamination

  • Top Mounted Controls
    • Dual gauges so you can check tank & tool pressure at a glance
    • 1/4" air outlet with a quick connector for fast hose changes

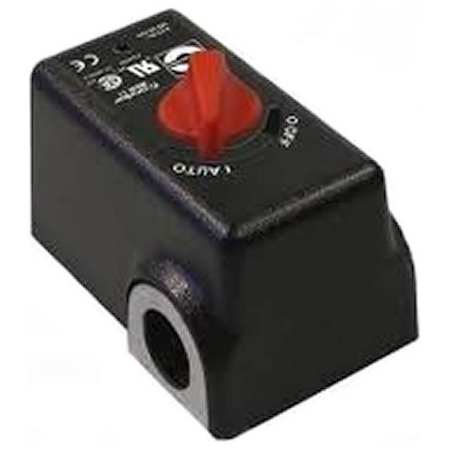

  • Built-In Regulator & Condor Pressure Switch
    • Maintains constant outlet pressure for tools
    • Efficient pressure control reduces wear and tear on unit

Specifications:

  • Fuel Type: Electric
  • Height: 14-5/8"
  • Width: 14-3/16"
  • Length: 17-5/16"
  • Product Weight: 35 lbs
  • Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

  • Pressure Gauge Included
  • Filter Included

Tank Specifications:

  • Tank Outlet Size: 1/4"
  • Tank Size: 2

Pump Specifications:

  • Lubrication Type: Oil Free
  • CFM: 3
  • Drive Type: Direct Drive

Engine and Motor Specifications:

  • Horsepower: 1 HP
  • Amperage: 7.6A
  • dB Rating: 60
  • Voltage: 110V
  • Voltage: 110V
Additional California Air Tools Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

CFM
3
Height
14.6 in.
Length
17.3 in.
Product Weight
35 lbs.
Width
14.2 in.

Dimensions and Measurements

CFM
3
Height
14.6 in.
Length
17.3 in.
Product Weight
35 lbs.
Width
14.2 in.

Included Components

Filter Included
Yes

Included Components

Filter Included
Yes

Characteristics and Features

After Cooler Included
No
Air Dryer Included
No
CFM @ 40 PSI
4 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
No
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
2
Tank Type
Hot Dog

Characteristics and Features

After Cooler Included
No
Air Dryer Included
No
CFM @ 40 PSI
4 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
No
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
2
Tank Type
Hot Dog

Electrical and Operational Information

Amperage
7.6
Decibels
60
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Contractor
Horsepower
1
Maximum Operating Pressure (PSI)
120
Stages
Single-Stage
Voltage
110

Electrical and Operational Information

Amperage
7.6
Decibels
60
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Contractor
Horsepower
1
Maximum Operating Pressure (PSI)
120
Stages
Single-Stage
Voltage
110

Warranty and Product Information

Manufacturer Warranty
1 Year Commercial, 1 Year Residential

Warranty and Product Information

Manufacturer Warranty
1 Year Commercial, 1 Year Residential
