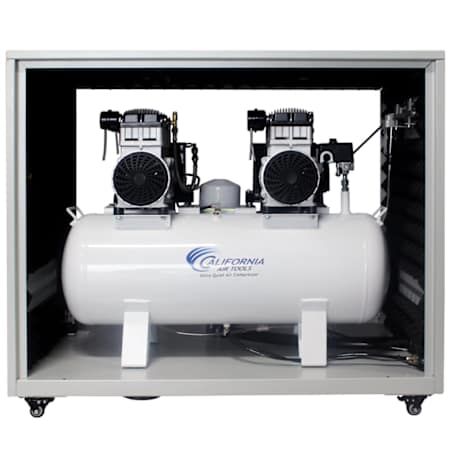

California Air Tools 4 HP 20 Gal 130 Max PSI Single-Stage Portable Electric (230 Volt) Reciprocating Air Compressor with Dryer, Auto Drain and Sound Proof Cabinet

Product Information:

• Ultra-Quiet SP Series Air Compressor
  • 1/4" air outlet with a quick connector for fast hose changes
  • 65 dBA is ideal for indoor use where noise is an issue
  • Delivers power, 98% dry air, air flow and less service with at least 30% less noise


• Two Powerful 2.0-HP (Rated/Running) Motors
  • 1680 RPM creating less noise and less wear
  • Time to fill tank from empty to full - 150 Seconds
  • Recovery time from 100 PSI to 130 PSI - 40 Seconds


• Oil-Free Dual Piston Pump System
  • Works in a variety of temperatures & uneven terrains
  • 3000+ hour life cycle before wear; comparable units are 1500 hours or less


• "NEW" Air Dryer Cartridge System - Up to 98% Dry Air
  • Remove up to 98% of the water vapor from the air
  • Aftercooler cools the air to reduce moisture in system & tools
  • "Spin-On" air dryer cartridge has a life of 2-years before replacement


• Now Includes (2) 0.01 Micron Prefilters: Helps satisfy ISO CLEAN ROOM standards


• Easy Start Valve
  • Uses less starting amps while starting
  • Releases a small amount of air from pump at start up to produce a no-load condition and allow the motor to spin freely


• 20-Gallon Steel Air Tank w/ Sound Proof Cabinet
  • Two latching doors and 4 swivel caster wheels allows for easy portability
  • Top exhaust fans remove air to reduce heat and provide cooler working conditions
  • Manually set auto drain timer for the frequency and duration of the draining process


• Thermal Overload Protector
  • Protects the motor from overheating
  • Low 14 amp draw works on NEMA 6-15P outlets


• Top Mounted Controls & Pressure Condor Switch: Dual gauges let you check tank and tool pressure easily

Specifications:

• Fuel Type: Electric
• Height: 39"
• Width: 46"
• Length: 31"
• Product Weight: 375 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Pressure Gauge Included
• Pressure Regulator Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1/4"
• Tank Size: 20

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Free
• CFM: 11
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 4 HP
• Amperage: 14A
• dB Rating: 65
• Voltage: 230V
• Voltage: 230V
