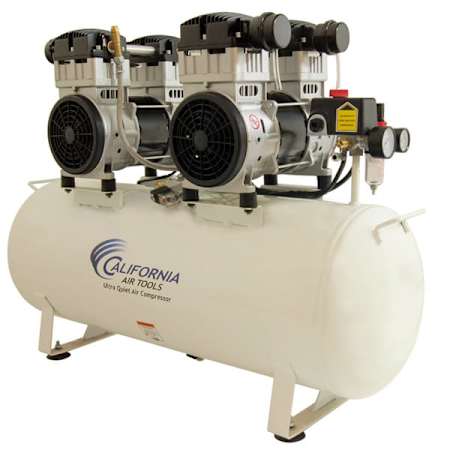

California Air Tools 4 HP 20 Gal 125 Max PSI Single-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor with Auto Drain

Product Information:

• Powerful 4-HP SP-Series 220-Volt 1-Phase Motor
  • Low 1680 RPM creates less noise & wear
  • 75 dBA is ideal for indoor use where noise is an issue


• Oil-Free Dual Piston Pump System
  • 12.8 CFM @ 40 PSI; 10.6 CFM @ 90 PSI; 125 PSI maximum
  • Has a 3000+ hour life cycle before wear; comparable units are 1500 hours or less
  • Works in a variety of temperatures & uneven terrains


• 20 Gallon Steel Air Tank With Auto-Drain
  • Just the right size for shop or garage
  • EZ1 auto-drain selects frequency & duration of tank drainage


• 4 Air Filters: Cleaner air for better tool operation


• Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 150 Seconds
  • Recovery time from 95 PSI to 125 PSI - 40 Seconds


• Top Mounted Controls & Condor Pressure Switch
  • Dual gauges so you can check tank & tool pressure at a glance
  • 1/4" air outlet with quick connector for fast tool changes


• Thermal Overload Protector: 14 Amp low amp draw works on NEMA 6-15P outlets

Specifications:

• Fuel Type: Electric
• Height: 28"
• Width: 15"
• Length: 39"
• Product Weight: 140 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Pressure Regulator Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1/4"
• Tank Size: 20

Pump Specifications:

• Lubrication Type: Oil Free
• CFM: 11
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 4 HP
• Amperage: 14A
• dB Rating: 75
• Voltage: 230V
• Voltage: 230V
