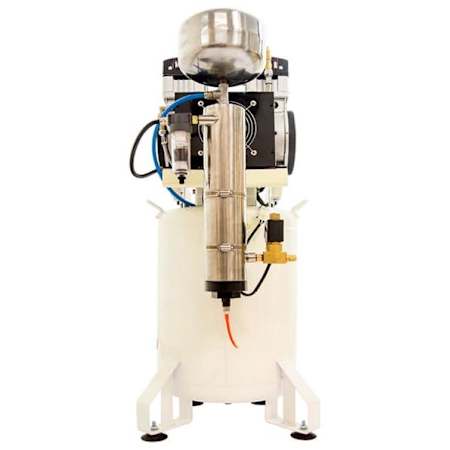

California Air Tools 2 HP 10 Gal 125 Max PSI Single-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor with 80% Dryer and Auto Drain

Product Information:

• Powerful 2-HP SP-Series 220V Motor With NEMA 6-15p Plug
  • 70 dBA is ideal for indoor use where noise is an issue
  • Low 1400 RPM creates less noise & wear; low 7 Amp draw
  • Top mounted controls provide easy access


• Oil-Free Dual Piston Pump System
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
  • Minimum pump life of 3000 hours before service


• Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 118 PSI to 125 PSI - 40 Seconds


• Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Provides high water, carbon dioxide, & sulphur compound adsorption


• Aftercooler Condenser
  • Heat exchanger cools the discharge air, causing condensation
  • The water vapor is pushed into the air dryer for evaporation


• 10 Gallon Steel Air Tank w/ Automatic Drain Timer
  • Kick-on pressure 95 PSI; kick-off pressure 125 PSI
  • EZ1 auto-drain selects frequency & duration of tank drainage



Specifications:

• Fuel Type: Electric
• Height: 35"
• Width: 23"
• Length: 16"
• Product Weight: 91 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Pressure Gauge Included
• Pressure Regulator Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1/4"
• Tank Size: 10

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Free
• CFM: 5
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 2 HP
• Amperage: 7A
• dB Rating: 70
• Voltage: 230V
• Voltage: 230V
