The California Air Tools CAT-10020CHAD-22060 has been discontinued

** See similar or replacement items below **

California Air Tools
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci5120358

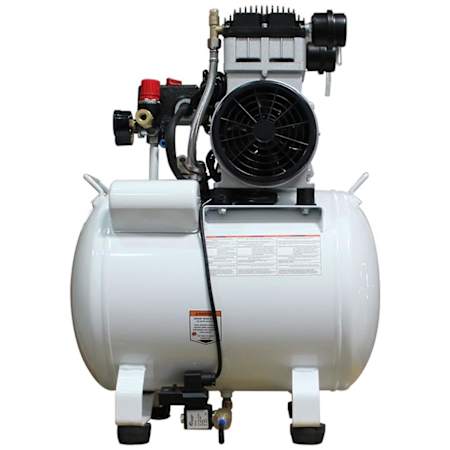

California Air Tools 2 HP 10 Gal 125 Max PSI Single-Stage Portable Electric (220 Volt) Reciprocating Air Compressor with Auto Drain

Model: CAT-10020CHAD-22060
|
Item: bci5120358

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Product Information:

  • Ultra-Quiet & Dependable Portable Air Compressor
    • Designed to be one of the quietest 2.0-HP in the industry
    • Perfect for continuous tools, staple guns, nail guns and airbrushes

  • High-Performance Oil-Free Dual Piston Pump
    • Use in a variety of temperatures (cold starts) and uneven terrains
    • Extra large dual pistons offer faster fill and recovery times
    • Has a 3000+ hour life cycle before wear; comparable units are 500 hours or less

  • Powerful 2-HP SP Series 220V 1-Phase Motor
    • Operates at only 1680 RPM creating less noise and less wear
    • Increased duty cycle allows for longer continuous run times
    • Air filters included for extra protection against dust and dirt

  • Thermal Overload Protector & Easy Start Valve
    • Protects motor from overheating; 7 amp draw
    • No-load startup allows for easier starting by using less starting amps

  • 10-Gallon Steel Air Tank w/ Wheel Kit
    • Time to fill tank from empty to full - 120 seconds
    • Recovery time from 95 PSI to 125 PSI - 25 seconds

  • Automatic Drain Valve
    • Eliminates manually draining your air compressor tank
    • Routine draining prevents air contamination and prolongs tool life

  • Top Mounted Controls
    • Two 1/4" air outlets with quick connectors for fast tool changes
    • Large dual pressure gauges let you check tank and tool pressure at a glance

  • Built-In Regulator & Condor Switch
    • Maintains constant outlet pressure for tools
    • Efficient pressure control reduces wear and tear on the unit

Specifications:

  • Fuel Type: Electric
  • Height: 26-1/2"
  • Width: 15"
  • Length: 19"
  • Product Weight: 75 lbs
  • Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

  • Pressure Gauge Included
  • Pressure Regulator Included
  • Filter Included

Tank Specifications:

  • Electric Drain Valve Included
  • Tank Outlet Size: 1/4"
  • Tank Size: 10

Pump Specifications:

  • Lubrication Type: Oil Free
  • CFM: 5
  • Drive Type: Direct Drive

Engine and Motor Specifications:

  • Horsepower: 2 HP
  • Amperage: 7A
  • dB Rating: 70
  • Voltage: 220V
  • Voltage: 220V
Additional California Air Tools Links

Manufacturer Resources

Product Manual

Dimensions and Measurements

CFM
5.3
Height
26.5 in.
Length
19 in.
Product Weight
75 lbs.
Width
15 in.

Dimensions and Measurements

CFM
5.3
Height
26.5 in.
Length
19 in.
Product Weight
75 lbs.
Width
15 in.

Included Components

Filter Included
Yes

Included Components

Filter Included
Yes

Characteristics and Features

After Cooler Included
No
Air Dryer Included
No
CFM @ 40 PSI
6.4 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
Yes
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pressure Regulator Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
10
Tank Type
Hot Dog

Characteristics and Features

After Cooler Included
No
Air Dryer Included
No
CFM @ 40 PSI
6.4 CFM
CFM Rated @
90 PSI
Electronic Drain Valve Included
Yes
Lubrication Type
Oil Free
Mounting Type
Portable
Pressure Gauge Included
Yes
Pressure Regulator Included
Yes
Pump Material
Aluminum
Tank Orientation
Horizontal
Tank Outlet Size
1/4"
Tank Size
10
Tank Type
Hot Dog

Electrical and Operational Information

Amperage
7
Decibels
70
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Entry
Horsepower
2
Maximum Operating Pressure (PSI)
125
Stages
Single-Stage
Voltage
220

Electrical and Operational Information

Amperage
7
Decibels
70
Drive Type
Direct Drive
Electrical Phases
1
Fuel Type
Electric
Grade
Entry
Horsepower
2
Maximum Operating Pressure (PSI)
125
Stages
Single-Stage
Voltage
220

Warranty and Product Information

Manufacturer Warranty
1 Year Commercial, 1 Year Residential

Warranty and Product Information

Manufacturer Warranty
1 Year Commercial, 1 Year Residential
