The California Air Tools 80050BD has been discontinued
** See similar or replacement items below **
Item # bci5120405

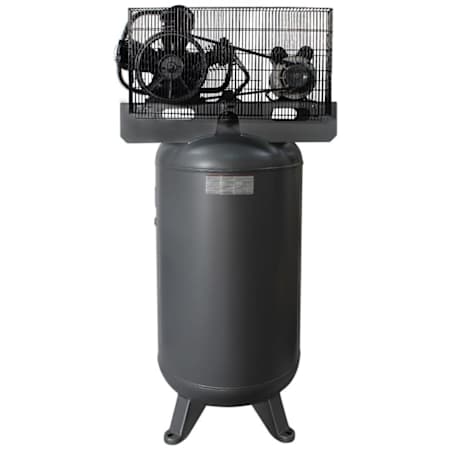

California Air Tools 5 HP 80 Gal 165 Max PSI Single-Stage Stationary Electric (208, 230 Volt) Reciprocating Air Compressor
Model: 80050BD|Item: bci5120405
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Product Information:
- CALAIR Single-Stage Oil-Lubricated Belt Driven Air Compressor
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- Perfect for DIY projects to the professional air compressor user
- Heavy-Duty 5-HP Induction Motor w/ Reset Switch
- Motor thermal overload for maximum protection
- Provides maximum performance and efficiency; 1072 RPM
- Plug Type: NEMA L6-30P - Receptacle: NEMA L6-30R
- Continuous Run Up to 8 Hours (10 Hours Maximum)
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- Cast Iron 3-Cylinder Oil Lubricated Pump
- Thermally stable cast iron cylinder body
- Power on/pressure switch and safety relief valve
- Life cycle before maintenance/service of 5,000 to 10,000 hours of usage
- Working Pressure: 135 - 155 PSI
- Time to fill tank from empty to full (155 PSI) - 7 min 50 seconds
- Recovery time from 135 PSI to 165 PSI - 1 min 19 seconds
- Maximum Operating (ambient) Temperatures: 36 to 108°F
- 80-Gallon ASME Vertical Tank
- Fully enclosed belt guard protects you and the belt
- Easy-access manual drain simplifies routine maintenance
- Easy Viewing Oil Sight Glass On Pump
- Easily check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 1-Year Limited Manufacturer Warranty: 2 limited warranty on pump; Protect your investment
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 68"
- Width: 28"
- Length: 35"
- Product Weight: 328 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 15
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 24A
- dB Rating: 90
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 15 |
Height | 68 in. |
Length | 35 in. |
Product Weight | 328 lbs. |
Width | 28 in. |
Dimensions and Measurements
CFM | 15 |
Height | 68 in. |
Length | 35 in. |
Product Weight | 328 lbs. |
Width | 28 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 17.5 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 17.5 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 24 |
Breaker Needs | 30 Amps |
Decibels | 90 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 165 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 24 |
Breaker Needs | 30 Amps |
Decibels | 90 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 165 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
