The Broan LP510RF has been discontinued

** See similar or replacement items below **

Broan
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci4555705

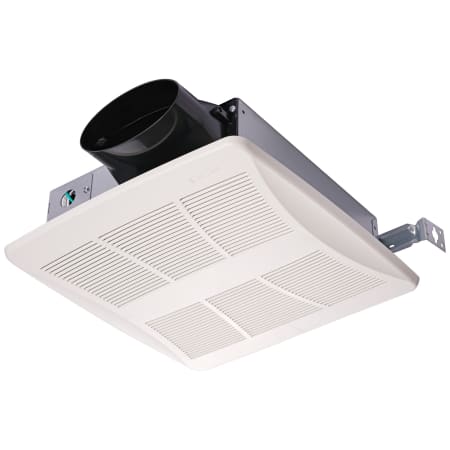

Broan Lo-Profile DC 100 CFM 1.2 Sone Bathroom Fan Finish Project Pack with Energy Star Rating - Pack of 4

Model: LP510RF
|
Item: bci4555705

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Project packs are ideal for contractors and builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room.

Features:

  • Features selectable CFM and continuous run which allows speeds of 50-80-100 for effective ventilation and built-in continuous run technology to remove moisture and reduce the risk of mold or mildew in most full baths
  • ENERGY STAR® Certified & Meets ASHRAE 62.2
  • 4" oval duct connection for installation flexibility, allows for ceiling or wall mounting
  • Housing and finish packs sold separately
  • Adjustable low CFM setting allows precise adjustment to prevent over-ventilating and maximize energy efficiency
  • Adjustable time delay sets how long fan will run on high speed before returning to a continuous lower speed
  • ETL listed for use over bathtubs and showers when connected to GFCI protected branch circuit (ceiling installation only)
  • Powerful enough for rooms up to 90 sq. ft.

Product Technology:

  • TRUE CFM™: Installed exhaust fan will not lose CFM performance even with complicated ducting, unlike the competition

Specifications:

  • Width: 13"
  • Length: 13-3/4
  • Material: Plastic
  • Product Weight: 23 lbs.
  • Installation Type: Finish Pack
  • CFM: 100, 50, 80
  • Sones: 0
  • Duct Size: 4" Oval
Additional Broan Links

Dimensions and Measurements

CFM
100, 50, 80
Depth
3.375 in.
Duct Size
4" Oval
Grille Length
13 in.
Grille Width
13.75 in.
Length
13.75 in.
Max Ventilation Area
90 sq. ft.
Product Weight
23 lbs.
Width
13 in.

Dimensions and Measurements

CFM
100, 50, 80
Depth
3.375 in.
Duct Size
4" Oval
Grille Length
13 in.
Grille Width
13.75 in.
Length
13.75 in.
Max Ventilation Area
90 sq. ft.
Product Weight
23 lbs.
Width
13 in.

Included Components

Heater Included
No
Light Included
No
Motion Sensor
No

Included Components

Heater Included
No
Light Included
No
Motion Sensor
No

Characteristics and Features

Fan Type
Project Pack
Humidity Sensing
No
Installation Type
Finish Pack
Material
Plastic
Mount Type
Ceiling, Wall

Characteristics and Features

Fan Type
Project Pack
Humidity Sensing
No
Installation Type
Finish Pack
Material
Plastic
Mount Type
Ceiling, Wall

Electrical and Operational Information

Amperage
0.23
Power Source
Hardwired
Sones
0
Speeds
3
Voltage
120

Electrical and Operational Information

Amperage
0.23
Power Source
Hardwired
Sones
0
Speeds
3
Voltage
120

Warranty and Product Information

Certifications
ETL
Collection
Lo-Profile DC
Country Of Origin
China
Energy Star
Yes
Manufacturer Warranty
1 Year
Title 20 Compliant
No
Title 24
Yes

Warranty and Product Information

Certifications
ETL
Collection
Lo-Profile DC
Country Of Origin
China
Energy Star
Yes
Manufacturer Warranty
1 Year
Title 20 Compliant
No
Title 24
Yes
