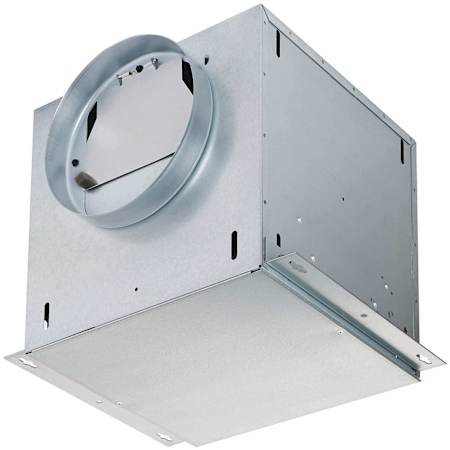

Broan 233 CFM Ceiling / Wall Mounted Energy Star Certified In-Line Fan
Model: L250EL|Item: bci4555710
$317.17
Finish: White -
Special Order
Installation Type
In-Line Installation
$317.17
Wall / Ceiling Mount
$236.47
In-Line Installation
Ventilator CFM
233 CFM
- 106 CFM$273.48
- 174 CFM$283.89
- 200 CFM$288.27
- 233 CFM$317.17
- 270 CFM$308.14
233 CFM
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-Details
Broan high-capacity, light commercial Energy Star certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and low-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
Features:
- 233 CFM provides ventilation designed for conference rooms, public restrooms and other areas in commercial buildings
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Exhaust fan is certified for ASHRAE, HVI, and UL
- Suitable for use in the kitchen
- Energy Star certified
- Covered under a 1 year manufacturer warranty
Specifications:
- CFM: 233
- Duct Size: 8" Round
- Housing Width: 12-1/4"
- Housing Length: 12-1/4"
- Housing Depth: 11-3/4"
- Amperage: 0.6A
Specifications
Key Specifications
- CFM233
- Depth11.75 in.
- Duct Size8" Round
- Length12.25 in.
- Width12.25 in.
- Heater IncludedNo
- Light IncludedNo
- Installation TypeFull Install
- Voltage120
Dimensions and Measurements
CFM | 233 |
Depth | 11.75 in. |
Duct Size | 8" Round |
Housing Depth | 11.75 in. |
Housing Length | 12.25 in. |
Housing Width | 12.25 in. |
Length | 12.25 in. |
Product Weight | 24 lbs. |
Width | 12.25 in. |
Dimensions and Measurements
CFM | 233 |
Depth | 11.75 in. |
Duct Size | 8" Round |
Housing Depth | 11.75 in. |
Housing Length | 12.25 in. |
Housing Width | 12.25 in. |
Length | 12.25 in. |
Product Weight | 24 lbs. |
Width | 12.25 in. |
Included Components
Heater Included | No |
Light Included | No |
Motion Sensor | No |
Included Components
Heater Included | No |
Light Included | No |
Motion Sensor | No |
Characteristics and Features
Duct Discharge | Horizontal |
Fan Type | In-Line Fan |
Housing Shape | Square |
Humidity Sensing | No |
Installation Type | Full Install |
Material | Galvanized Steel |
Mount Type | Ceiling, Wall |
Characteristics and Features
Duct Discharge | Horizontal |
Fan Type | In-Line Fan |
Housing Shape | Square |
Humidity Sensing | No |
Installation Type | Full Install |
Material | Galvanized Steel |
Mount Type | Ceiling, Wall |
Electrical and Operational Information
Amperage | 0.6 |
Drive Type | Direct Drive |
Power Source | Plug-In |
Speeds | 1 |
Voltage | 120 |
Wattage | 61 |
Electrical and Operational Information
Amperage | 0.6 |
Drive Type | Direct Drive |
Power Source | Plug-In |
Speeds | 1 |
Voltage | 120 |
Wattage | 61 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | ASHRAE, HVI, UL |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | ASHRAE, HVI, UL |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Title 20 Compliant | Yes |
Title 24 | Yes |
