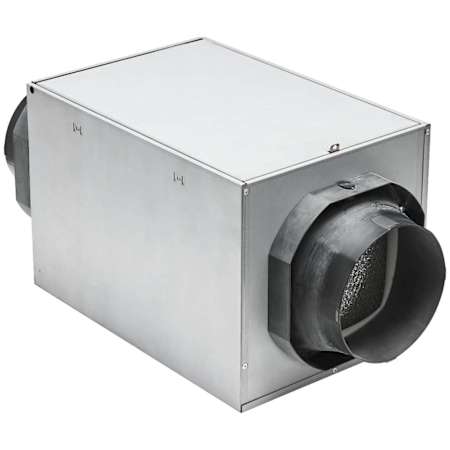

Broan Fresh In 130 - 180 CFM Ceiling / Wall Mounted Energy Star Certified Supply Fan
Model: FIN-180P|Item: bci4621093
from theFresh In Collection
$340.45
416 In Stock
Details
Ultra compact, Broan Fresh In supply fans can be installed easily between 12" ceiling joists with the included bracket, and between 16" and 24" joists with a separate mounting bracket kit (model number FIN-S1624, not included). Fresh In supply fans mount flush to the ceiling, in the attic, in a wall, or anywhere it fits and can be properly ducted. With an optional finishing ring and a paintable filter access door, the ventilator blends in wherever it is installed.
Features:
- Adjustable speed up to 180 CFM
- Compact and designed to fit between 12" c.c. joists
- Exhaust fan is certified for HVI
- For any typical installation, the built-in intelligence delivers airflow without losing efficiency, filter clogging, or ducting situations that affect static pressure
- Broan Fresh In means code compliance or comfort mode settings, constant airflow and easy maintenance
- Molded foam and insulated housing inserts protect against air leakage and condensation
- Washable aluminum filter with optional MERV 8 (mold spore and fine dust capture) and MERV 13 (mold spore, fine dust, bacteria and smoke capture) filters
- Covered under a 5 year parts manufacturer warranty
Specifications:
- CFM: 180, 130
- Duct Size: 6" Round
- Housing Width: 10"
- Housing Depth: 10-1/4"
- Amperage: 0.7A
Specifications
Key Specifications
- CFM130, 180
- Depth10.25 in.
- Duct Size6" Round
- Length14.75 in.
- Width10, 10.25 in.
- Heater IncludedNo
- Light IncludedNo
- Installation TypeFan Only
- Sones0
- Voltage120
Dimensions and Measurements
CFM | 130, 180 |
Depth | 10.25 in. |
Duct Size | 6" Round |
Grille Length | 14.75 in. |
Grille Width | 10.25 in. |
Housing Depth | 10.25 in. |
Housing Width | 10 in. |
Length | 14.75 in. |
Product Weight | 11 lbs. |
Width | 10, 10.25 in. |
Dimensions and Measurements
CFM | 130, 180 |
Depth | 10.25 in. |
Duct Size | 6" Round |
Grille Length | 14.75 in. |
Grille Width | 10.25 in. |
Housing Depth | 10.25 in. |
Housing Width | 10 in. |
Length | 14.75 in. |
Product Weight | 11 lbs. |
Width | 10, 10.25 in. |
Included Components
Heater Included | No |
Includes Remote | No |
Light Included | No |
Motion Sensor | No |
Included Components
Heater Included | No |
Includes Remote | No |
Light Included | No |
Motion Sensor | No |
Characteristics and Features
Duct Discharge | Horizontal |
Fan Type | Attic Fan |
Housing Shape | Rectangle |
Humidity Sensing | No |
Installation Type | Fan Only |
Material | Metal |
Mount Type | Ceiling, Wall |
Characteristics and Features
Duct Discharge | Horizontal |
Fan Type | Attic Fan |
Housing Shape | Rectangle |
Humidity Sensing | No |
Installation Type | Fan Only |
Material | Metal |
Mount Type | Ceiling, Wall |
Electrical and Operational Information
Amperage | 0.7 |
Drive Type | Direct Drive |
Power Source | Plug-In |
Sones | 0 |
Speeds | 2 |
Voltage | 120 |
Wattage | 13.4, 40 |
Electrical and Operational Information
Amperage | 0.7 |
Drive Type | Direct Drive |
Power Source | Plug-In |
Sones | 0 |
Speeds | 2 |
Voltage | 120 |
Wattage | 13.4, 40 |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Fresh In™, Fresh In |
Country Of Origin | USA, Mexico |
Energy Star | Yes |
Fire Rated | No |
Made in America | Yes |
Manufacturer Warranty | 5 Year Parts |
Title 20 Compliant | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Fresh In™, Fresh In |
Country Of Origin | USA, Mexico |
Energy Star | Yes |
Fire Rated | No |
Made in America | Yes |
Manufacturer Warranty | 5 Year Parts |
Title 20 Compliant | No |
