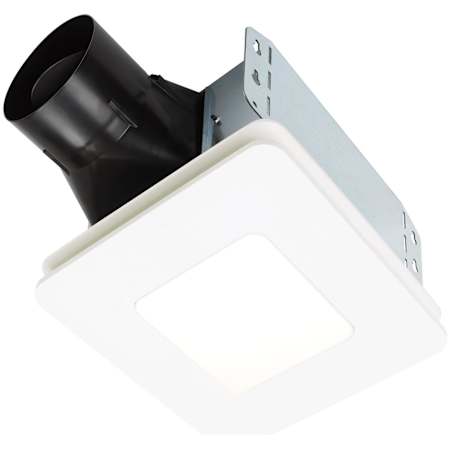

Broan Roomside 80 CFM 1.5 Sone Ceiling Mounted Energy Star Certified Bath Fan
Model: BELS8|Item: bci4868700
Details
The Broan-NuTone® BELS8 Roomside Series ENERGY STAR® humidity sensing bath fan, with LED light, offers fast, easy installation without attic access and no drywall cutting necessary. The design features patent pending technology with SlideClip™ grille/cover making cleaning easy with a springless attachment. Built-in humidity sensing automatically turns the fan on and off when humidity in the room reaches the user-adjustable set-point. The CleanCover™ grille also offers a seamless design that blends into the ceiling for a modern appearance. This series is ENERGY STAR® certified reducing energy consumption by over 50% and meeting building code requirements. All the desired features of a premium bathroom exhaust fan at an affordable price for cost-conscious, builders, contractors and DIYers. This HVI certified product has efficient performance to remove moisture, odors and pollutants to provide Better Quality of Air for Better Quality of Life.
Features:
- No cut room side installation makes it possible to retrofit to spaces with no attic access, without having to cut drywall
- Patent pending technology for a springless attachment that allows for fast installation of the grille/cover and easy cleaning
- Seamless Design: Simple design with the modern CleanCover™ grille provides a floating appearance that blends into the ceiling
- Built-in humidity sensing automatically turns the fan on and off when humidity in the room reaches the user-adjustable set-point
- 80 CFM output quickly clears your bathroom of moisture
- At 1.5 sones of sound output, this fan operates quietly
- Integrated LED lighting brightly illuminates your bathroom
- Bath fan is certified for HVI
- Covered under a 3 year manufacturer warranty
Specifications:
- CFM: 80
- Sones: 1.5
- Bulb Type: LED
- Duct Size: 4" Round
- Grille Width: 10"
- Grille Length: 10"
- Housing Width: 7-1/4"
- Housing Length: 7-1/2"
- Housing Depth: 7-1/2"
- Amperage: 0.2A
- Voltage: 120V
- Wattage: 21W
Manufacturer Resources
Install SheetDimensions and Measurements
CFM | 80 |
Depth | 7.5, 5.75 in. |
Duct Size | 4" Round |
Grille Length | 9.75 in. |
Grille Width | 9.75 in. |
Housing Depth | 7.5, 5.75 in. |
Housing Length | 7.5 in. |
Housing Width | 7.25 in. |
Length | 7.5, 9.75 in. |
Max Ventilation Area | 75 sq. ft. |
Product Weight | 7.7 lbs. |
Width | 7.25, 9.75 in. |
Dimensions and Measurements
CFM | 80 |
Depth | 7.5, 5.75 in. |
Duct Size | 4" Round |
Grille Length | 9.75 in. |
Grille Width | 9.75 in. |
Housing Depth | 7.5, 5.75 in. |
Housing Length | 7.5 in. |
Housing Width | 7.25 in. |
Length | 7.5, 9.75 in. |
Max Ventilation Area | 75 sq. ft. |
Product Weight | 7.7 lbs. |
Width | 7.25, 9.75 in. |
Included Components
Bulb Included | Yes |
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Light Included | No, Yes |
Motion Sensor | No |
Included Components
Bulb Included | Yes |
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Light Included | No, Yes |
Motion Sensor | No |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Grille Shape | Square |
Housing Shape | Rectangle, Square |
Humidity Sensing | No, Yes |
Installation Type | Full Install |
Material | Polymer, Galvanized Steel |
Mount Type | Ceiling |
Night Light | No |
Theme | Modern, Contemporary |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Grille Shape | Square |
Housing Shape | Rectangle, Square |
Humidity Sensing | No, Yes |
Installation Type | Full Install |
Material | Polymer, Galvanized Steel |
Mount Type | Ceiling |
Night Light | No |
Theme | Modern, Contemporary |
Electrical and Operational Information
Amperage | 0.2 |
Frequency | 60 Hertz |
Power Source | Hardwired |
Sones | 1.5 |
Speeds | 1 |
Voltage | 120 |
Wattage | 21, 20.9 |
Watts Per Bulb | 12.7 |
Electrical and Operational Information
Amperage | 0.2 |
Frequency | 60 Hertz |
Power Source | Hardwired |
Sones | 1.5 |
Speeds | 1 |
Voltage | 120 |
Wattage | 21, 20.9 |
Watts Per Bulb | 12.7 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Roomside |
Country Of Origin | China |
Energy Star | Yes |
Fire Rated | No |
Manufacturer Warranty | 3 Year, 3 Years |
Title 20 Compliant | No |
Title 24 | No |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Roomside |
Country Of Origin | China |
Energy Star | Yes |
Fire Rated | No |
Manufacturer Warranty | 3 Year, 3 Years |
Title 20 Compliant | No |
Title 24 | No |
