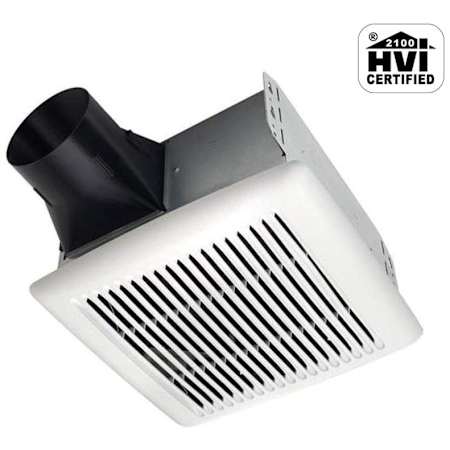

Broan 50 CFM 0.5 Sone Ceiling Mounted Energy Star Certified Bath Fan
Model: AE50|Item: bci2766172
Details
Features:
- 50 CFM output quickly clears your bathroom of moisture
- Ventilates rooms up to 45 sq. ft.
- At 0.5 sones of sound output, this ultra quiet fan will keep your bathroom quiet and peaceful
- Sturdy, easy, four-point mounting directly to joist
- Compact housing mounts directly to inboard joists, making retrofit or new installation applications straight-forward and simple
- Specifically designed to remove excess moisture and odors while circulating air
- Bath fan is certified for HVI and UL
- Covered under a 1 year manufacturer warranty
Product Technologies:
Easy Installation: Convenient hanger bars secure into position after connecting the unit to rafters, making installation a snap. Your new fan is ready for use almost as fast as you can turn the switch.
Mid Sones: We know that comfort and ambience matter in your bathroom. This fan produces 0.5 sones of sound output, keeping the noise in your bathroom at a reasonable level.
Mid CFM Capacity: This fan has an ample 50 CFM (cubic feet per minute) of clearing capacity designed for medium sized bathrooms. Controlling humidity in your bathroom extends the life of your decor and makes for a more hospitable space to prepare for the day ahead.
Specifications:
- CFM: 50
- Sones: 0.5
- Duct Size: 4" Round
- Grille Width: 12"
- Grille Length: 12"
- Housing Width: 10"
- Housing Length: 9-1/4"
- Housing Depth: 5-3/4"
- Amperage: 0.2A
- Voltage: 120V
- Wattage: 20W
Dimensions and Measurements
CFM | 50 |
Depth | 5.75 in. |
Duct Size | 4" Round |
Grille Length | 11.5, 11.25 in. |
Grille Width | 12 in. |
Housing Depth | 5.75 in. |
Housing Height | 5.75 in. |
Housing Length | 9.25 in. |
Housing Width | 10 in. |
Length | 11.5 in. |
Max Ventilation Area | 45 sq. ft. |
Product Weight | 10 lbs. |
Width | 12 in. |
Dimensions and Measurements
CFM | 50 |
Depth | 5.75 in. |
Duct Size | 4" Round |
Grille Length | 11.5, 11.25 in. |
Grille Width | 12 in. |
Housing Depth | 5.75 in. |
Housing Height | 5.75 in. |
Housing Length | 9.25 in. |
Housing Width | 10 in. |
Length | 11.5 in. |
Max Ventilation Area | 45 sq. ft. |
Product Weight | 10 lbs. |
Width | 12 in. |
Included Components
Fan Only | Yes |
Heater Included | No |
Light Included | No |
Included Components
Fan Only | Yes |
Heater Included | No |
Light Included | No |
Characteristics and Features
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan |
Grille Finish | Whites |
Grille Shape | Rectangle |
Housing Shape | Rectangle |
Humidity Sensing | No |
Material | Galvanized Steel, Polymer |
Mount Type | Ceiling |
Theme | Transitional |
Characteristics and Features
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan |
Grille Finish | Whites |
Grille Shape | Rectangle |
Housing Shape | Rectangle |
Humidity Sensing | No |
Material | Galvanized Steel, Polymer |
Mount Type | Ceiling |
Theme | Transitional |
Electrical and Operational Information
Amperage | 0.2 |
Frequency | 60 Hertz |
Power Source | Plug-In |
Sones | 0.5 |
Speeds | 1 |
Voltage | 120 |
Wattage | 20 |
Electrical and Operational Information
Amperage | 0.2 |
Frequency | 60 Hertz |
Power Source | Plug-In |
Sones | 0.5 |
Speeds | 1 |
Voltage | 120 |
Wattage | 20 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI, UL |
Collection | InVent |
Country Of Origin | USA |
Energy Star | Yes |
Location Rating | Wet Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Series | InVent |
Title 20 Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI, UL |
Collection | InVent |
Country Of Origin | USA |
Energy Star | Yes |
Location Rating | Wet Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Series | InVent |
Title 20 Compliant | Yes |
