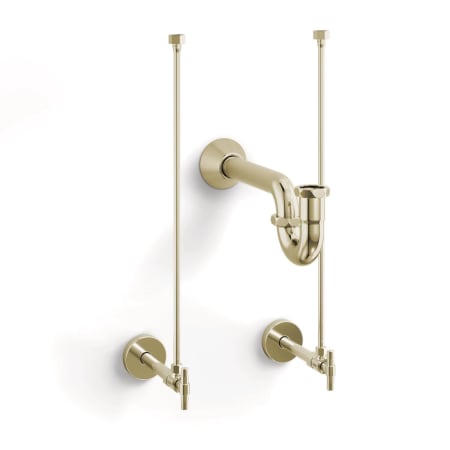

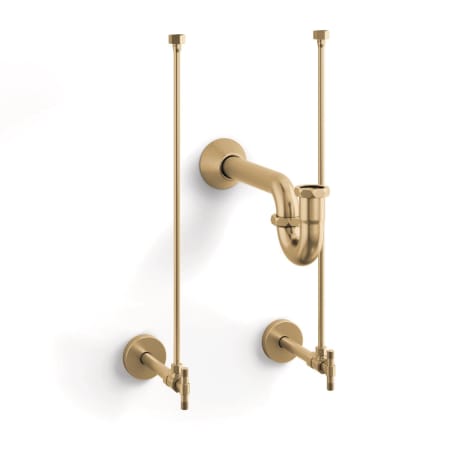

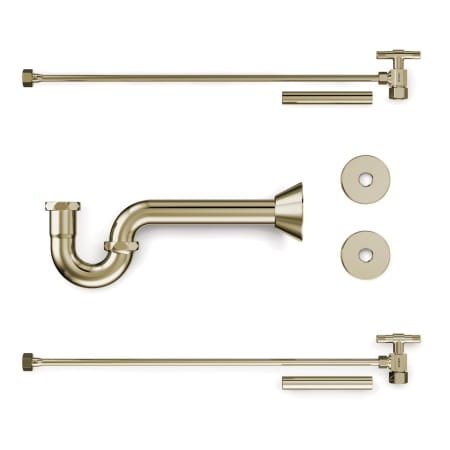

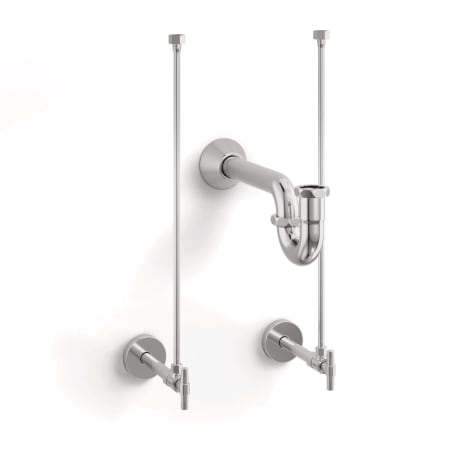

Brizo Litze Decorative Sink Supply Kit with Angle Stops, Supply Lines and P Trap

Brizo AVS5-LZ101 Includes:

• Brizo P Trap: BT031141
• Brizo Supply Line: BT01201 (qty 2)
• Brizo Angle Stop: BT022205 (qty 2)

Brizo AVS5-LZ101 P Trap Features:

• 1-1/4" diameter drain pipe
• 12" overall length
• Brass construction
• Adjustable rotation on tube outlet
• Slip-joint inlet
• Optional extension tube available for sink drain pipe
• Escutcheon included
• Attaches to drain body or tailpiece with 1-1/4"-11 NPSM threaded connection
• Compatible with Brizo Drain models: RP72411, RP72412, RP72413 & RP72414

Brizo AVS5-LZ101 Supply Line Features:

• 20” finished copper tubing
• Bull-nose connection to faucet
• 3/8” OD compression connection to supply stop (compression fitting not included)
• 1/2-14 NPSM coupling nut included
• Tube to be cut to length at installation

Brizo AVS5-LZ101 Angle Stop Features:

• Brass construction
• 1/4 turn stainless steel ball valve
• 3/8" OD compression outlet connection
• Includes wall escutcheon and 5" supply tube cover
• Height: 2-3/4" (top to bottom)
• Width: 7-15/16" (left to right)
• Water Connection: 3/8" OD compression
