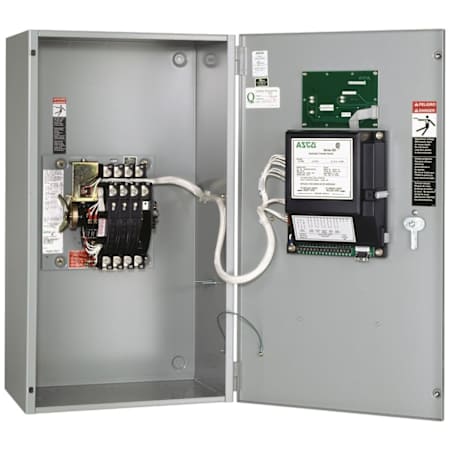

Briggs And Stratton ASCO 185 100-Amp (120 / 208V) 3-Phase Outdoor Automatic Transfer Switch



Features:

100-Amp 185 Series By ASCO Automatic Transfer Switch (120/208V 3-Phase)

• Compatible with Briggs and Stratton 3-phase generators

NEMA 3R Outdoor Rated Enclosure

• Approved for indoor or outdoor installations

Standard Installation

• Requires a sub-panel for overload protection

True Double-Throw Contacts with Inherent Mechanical Interlocking

• Prevents connection of generator and utility source for maximum safety

Terminals For Connection of Neutral and Ground Conductors

• Allows for easier installation

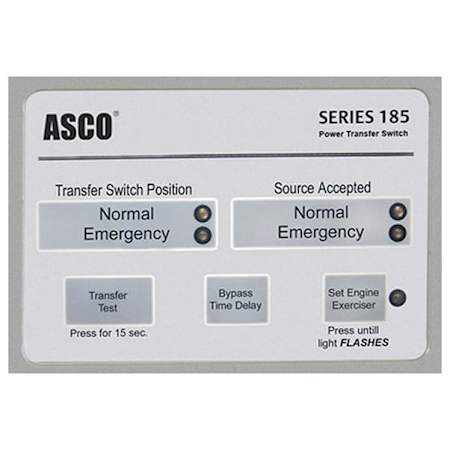

Convenient Control Interface with Symbols and Visual Indicators

• Makes it easy to see transfer switch and power source status

Built-In Auxiliary Contacts For Switch Position Indication

• Provides immediate indication when the switch positions changes

Additional Features:

• Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements

• Listed to UL 1008 for optional standby systems

Please See Spec Sheet For Additional Compliance and Safety Standards

3-Year Limited Warranty



Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 67 lbs
• Width: 18-1/2"
• Height: 10-1/2"

Specifications:

• Voltage: 120, 208V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 100A
• Max Utility Input: 100A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 3 Year
