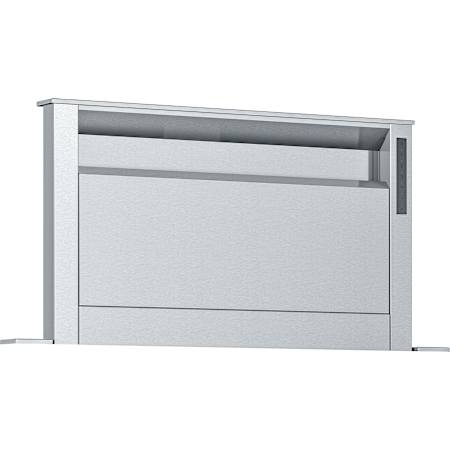

Bosch 160 - 600 CFM 30 Inch Wide Downdraft Range Hood with 3 Speeds and Switch Controls
Model: HDD80052UC|Item: bci4991139
$1,899.00
Finish: Stainless Steel -
Special Order
Details
Features:
- Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors

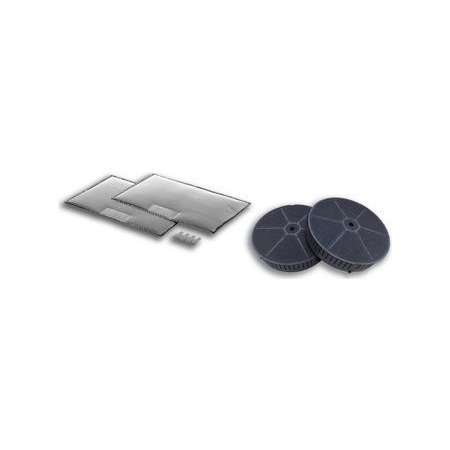

- Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
- lighting illuminates the cooking area
- Switch controls allow you to easily set the power level of your range hood
- 3 available speeds provide just the right amount of ventilation
- Hood can be converted to ductless ventilation for improved efficiency and flexible installation options

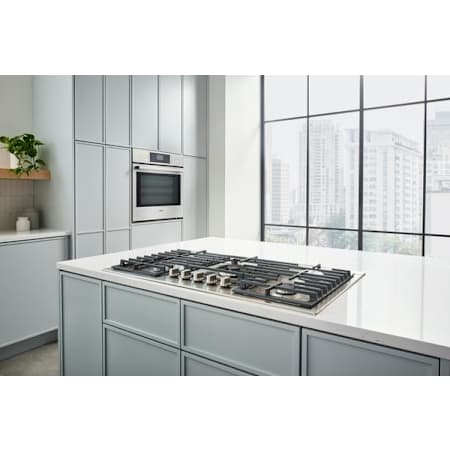

- Range hood retracts out of sight to preserve clean sight lines when not in use
- Equipped with a sleek front panel that protects your walls from splatters
- 6 exhaust connections possible (transition sold separately)
Specifications:
- CFM: 160, 380, 600
- Sones: 12, 2
- Nominal Width: 30"
- Width: 31"
- Height: 44-3/8"
- Depth: 2-3/4"
- Duct Size: 6" Round, 8" Round
- Frequency: 60 Hz
- Amperage: 10A
- Voltage: 120V
- Wattage: 285, 358, 68.5W
Manufacturer Resources
Specification SheetDimensions and Measurements
CFM | 160, 380, 600 |
CFM (High) | 600 |
Depth | 2.75 in. |
Duct Size | 6" Round, 8" Round |
Height | 44.375 in. |
Nominal Width | 30 in. |
Product Weight | 37 lbs. |
Width | 31 in. |
Dimensions and Measurements
CFM | 160, 380, 600 |
CFM (High) | 600 |
Depth | 2.75 in. |
Duct Size | 6" Round, 8" Round |
Height | 44.375 in. |
Nominal Width | 30 in. |
Product Weight | 37 lbs. |
Width | 31 in. |
Included Components
Available Without Blower | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Included Components
Available Without Blower | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Characteristics and Features
Blower Type | In-Line |
Control Type | Switch |
Duct Discharge | Horizontal, Vertical |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
Panel Ready | No |
Characteristics and Features
Blower Type | In-Line |
Control Type | Switch |
Duct Discharge | Horizontal, Vertical |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
Panel Ready | No |
Electrical and Operational Information
Amperage | 10 |
Frequency | 60 Hertz |
Sones | 12, 2 |
Speeds | 3 |
Voltage | 120 |
Wattage | 285, 358, 68.5 |
Electrical and Operational Information
Amperage | 10 |
Frequency | 60 Hertz |
Sones | 12, 2 |
Speeds | 3 |
Voltage | 120 |
Wattage | 285, 358, 68.5 |
Warranty and Product Information
Certifications | UL |
Energy Star | No |
Outdoor Approved | No |
Title 20 Compliant | No |
Warranty and Product Information
Certifications | UL |
Energy Star | No |
Outdoor Approved | No |
Title 20 Compliant | No |
