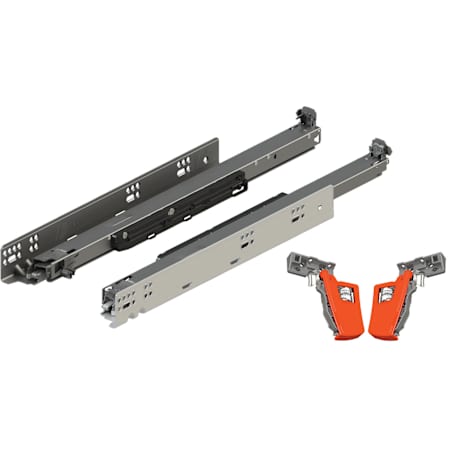

Blum MOVENTO 31 Inch Full Extension Concealed Locking Drawer Slides with 170 Pound Weight Capacity and Soft Close - Pair
Model: 769.762-LOCK KIT|Item: bci5235335
from theMovento Collection
$68.37
Finish: Zinc -
304 In Stock
This package includes the following items
Details
Features:
- Designed to support up to 170 pounds of weight
- Locking device and mounting hardware included
- Provides easy access to the drawer with full extension slides
- Lever allows for quick and easy removal of the drawer from the cabinet members
- Intended for use in face frame and panel (frameless) cabinets
- Covered by Blum's limited lifetime manufacturer warranty
Specifications:
- Drawer Length: 31-3/4"
- Slide Length: 30-3/4"
- Extension Type: Full Extension
- Slide Type: Concealed
- Weight Capacity: 170 lbs.
- Material: Steel
- ANSI/BHMA Certification: Grade 1
- Quantity: 2
Dimensions and Measurements
Drawer Length | 31.75 in. |
Extension | 30.75 in. |
Height | 1.87 in. |
Length | 30.75 in. |
Max Capacity (Pounds) | 170 lbs. |
Nominal Length | 31 in. |
Quantity | 2 |
Width | 1.61 in. |
Dimensions and Measurements
Drawer Length | 31.75 in. |
Extension | 30.75 in. |
Height | 1.87 in. |
Length | 30.75 in. |
Max Capacity (Pounds) | 170 lbs. |
Nominal Length | 31 in. |
Quantity | 2 |
Width | 1.61 in. |
Characteristics and Features
Adjustable | Yes |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | No |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Undermount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Concealed |
Soft Close | Yes |
Characteristics and Features
Adjustable | Yes |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | No |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Undermount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Concealed |
Soft Close | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
BHMA Certification | Grade 1 |
Collection | MOVENTO |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
BHMA Certification | Grade 1 |
Collection | MOVENTO |
Manufacturer Warranty | Limited Lifetime |
