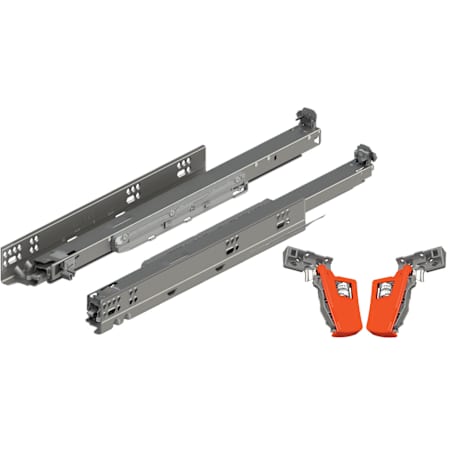

Blum MOVENTO 16 Inch Full Extension Concealed Locking Drawer Slides with 125 Pound Weight Capacity and Soft Close - Pair
Model: 763.381-LOCK KIT|Item: bci5235340
from theMovento Collection
$42.95
Finish: Zinc -
257 In Stock
Free Shipping on orders over $49.00!
Leaves the Warehouse in 1 to 2 business days
-This package includes the following items
Details
Features:
- Designed to support up to 125 pounds of weight
- Locking device and mounting hardware included
- Provides easy access to the drawer with full extension slides
- Lever allows for quick and easy removal of the drawer from the cabinet members
- Intended for use in face frame and panel (frameless) cabinets
- Covered by Blum's limited lifetime manufacturer warranty
Specifications:
- Drawer Length: 16-3/4"
- Slide Length: 15-3/4"
- Extension Type: Full Extension
- Slide Type: Concealed
- Weight Capacity: 125 lbs.
- Material: Steel
- ANSI/BHMA Certification: Grade 1
- Quantity: 2
Dimensions and Measurements
Drawer Length | 16.75 in. |
Extension | 15.75 in. |
Height | 1.87 in. |
Length | 15.75 in. |
Max Capacity (Pounds) | 125 lbs. |
Nominal Length | 16 in. |
Quantity | 2 |
Width | 1.61 in. |
Dimensions and Measurements
Drawer Length | 16.75 in. |
Extension | 15.75 in. |
Height | 1.87 in. |
Length | 15.75 in. |
Max Capacity (Pounds) | 125 lbs. |
Nominal Length | 16 in. |
Quantity | 2 |
Width | 1.61 in. |
Characteristics and Features
Adjustable | Yes |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | No |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Undermount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Concealed |
Soft Close | Yes |
Characteristics and Features
Adjustable | Yes |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | No |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Undermount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Concealed |
Soft Close | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
BHMA Certification | Grade 1 |
Collection | MOVENTO |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
BHMA Certification | Grade 1 |
Collection | MOVENTO |
Manufacturer Warranty | Limited Lifetime |
