Blum AVENTOS HS Up-And-Over Lift Mechanism For Cabinet Doors Up To 31 Inches High with Max Weight of 29.4 Pounds

Caution: Before ordering this lift system, please ensure your cabinet height and cabinet door weight fall within the listed perimeters in the table below. Failure to properly align these values will result in poor performance, and may cause the system to become unsafe to operate.

Features:

• Revolutionary system that will work with all common door widths and heights
• Works with door height from 27" to 31"
• Designed for door weights from 4.4 to 10.3 pounds (including handle weights)
• The AVENTOS HS system lifts the cabinet door up-and-over with enough clearance for crown molding
• Include two (2) lift mechanisms

Specifications:

• Cabinet Height: 27" to 31"
• Minimum Internal Cabinet Depth: 11"
• Maximum Door Weight: 29.4 lbs

• 20S2A00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 20 Inches High with Max Weight of 10.3 Pounds
• 20S2B00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 20 Inches High with Max Weight of 20.7 Pounds
• 20S2C00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 20 Inches High with Max Weight of 23.1 Pounds
• 20S2D00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 26 Inches High with Max Weight of 14.5 Pounds
• 20S2E00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 26 Inches High with Max Weight of 27.7 Pounds
• 20S2F00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 26 Inches High with Max Weight of 36.8 Pounds
• 20S2G00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 31 Inches High with Max Weight of 17 Pounds
• 20S2H00.N5 (This Model): Up-And-Over Lift Mechanism For Cabinet Doors Up To 31 Inches High with Max Weight of 29.4 Pounds
• 20S2I00.N5: Up-And-Over Lift Mechanism For Cabinet Doors Up To 31 Inches High with Max Weight of 47.3 Pounds

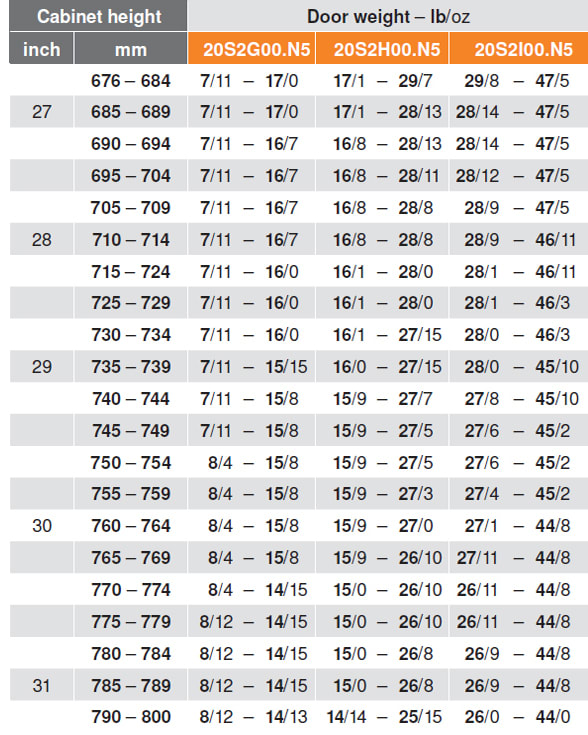

Cabinet/Door Alignment Chart:
