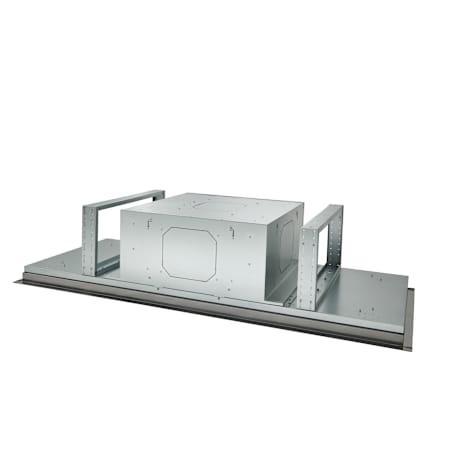

Best HBC1 650 -1650 CFM 63 Inch Wide Range Hood Insert with LED Light - Blower Sold Separately
Model: HBC163ESS|Item: bci5250142
Details
Available in 43" and 63" models, the HBC1 series provides powerful hidden ventilation while keeping sightlines open. Choose from powerful 650 to 1650 Max Blower CFM options (sold separately) for premium performance that meets virtually any cooking demands. The HBC1 series is equipped with Code Ready™ Technology (CRT), which provides the ability to reduce CFM levels to address local codes or make-up air requirements. Four-speed electronic controls, 10-minute delay off, three levels of bright LED lighting, and ADA capability round out a feature set that is sure to impress.
Features:
- Blower outputs up to 1650 CFM to keep your kitchen free of cooking fumes and odors
- Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
- Included remote allows for easy control of the hood
- 1 LED light illuminates the cooking area (bulbs included)
- Complements items from the Best Ceiling Hood HBC1 series collection
- Touch controls allow you to easily set the power level of your range hood
- 4 available speeds provide just the right amount of ventilation
- 4-speed electronic controls offer the right speed for any cooking application
- Equipped with Code Ready™ Technology (CRT), which provides the ability to reduce CFM levels to address local codes or make-up air requirements
- Three levels of LED light intensities to supply as much light as you need
- 10-minute delay-off feature offers additional convenience and peace of mind
- ADA capable via remote control to increase accessibility for all users
- Covered under 2 year labor and 5 year parts manufacturer warranties
Specifications:
- CFM: 650
- Width: 63-1/2"
- Height: 13-15/16"
- Depth: 27-9/16"
- Duct Size: 10" Round
- Ceiling Height: 48" - 48"
- Height Above Cooktop: 48" to 72"
- Amperage: 6.6A
- Voltage: 120V
- Wattage: 792W
Specifications
Key Specifications
- Ceiling Height (Max)48 in.
- Ceiling Height (Min)48 in.
- CFM650
- Depth27.562 in.
- Duct Size10" Round
- Height13.9375 in.
- Blower TypeInternal
- Filter TypeMesh Filters
Manufacturer Resources
Specification SheetDimensions and Measurements
Ceiling Height (Max) | 48 in. |
Ceiling Height (Min) | 48 in. |
CFM | 650 |
CFM (High) | 1650 |
Depth | 27.562 in. |
Duct Size | 10" Round |
Height | 13.9375 in. |
Height Above Cooktop | 48" to 72" |
Height Above Cooktop (Max) | 48 in. |
Height Above Cooktop (Min) | 48 in. |
Product Weight | 120 lbs. |
Width | 63.5 in. |
Dimensions and Measurements
Ceiling Height (Max) | 48 in. |
Ceiling Height (Min) | 48 in. |
CFM | 650 |
CFM (High) | 1650 |
Depth | 27.562 in. |
Duct Size | 10" Round |
Height | 13.9375 in. |
Height Above Cooktop | 48" to 72" |
Height Above Cooktop (Max) | 48 in. |
Height Above Cooktop (Min) | 48 in. |
Product Weight | 120 lbs. |
Width | 63.5 in. |
Included Components
Available Without Blower | Yes |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | Yes |
Light Included | Yes |
Included Components
Available Without Blower | Yes |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | Yes |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Horizontal, Vertical |
Filter Type | Mesh Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 1 |
Panel Ready | No |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Horizontal, Vertical |
Filter Type | Mesh Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 1 |
Panel Ready | No |
Electrical and Operational Information
Amperage | 6.6 |
Speeds | 4 |
Voltage | 120 |
Wattage | 792 |
Electrical and Operational Information
Amperage | 6.6 |
Speeds | 4 |
Voltage | 120 |
Wattage | 792 |
Warranty and Product Information
ADA | Yes |
Collection | Best Ceiling Hood HBC1 series |
Country Of Origin | Taiwan |
Energy Star | No |
Manufacturer Warranty | 2 Year Labor, 5 Year Parts |
Outdoor Approved | No |
Warranty and Product Information
ADA | Yes |
Collection | Best Ceiling Hood HBC1 series |
Country Of Origin | Taiwan |
Energy Star | No |
Manufacturer Warranty | 2 Year Labor, 5 Year Parts |
Outdoor Approved | No |
