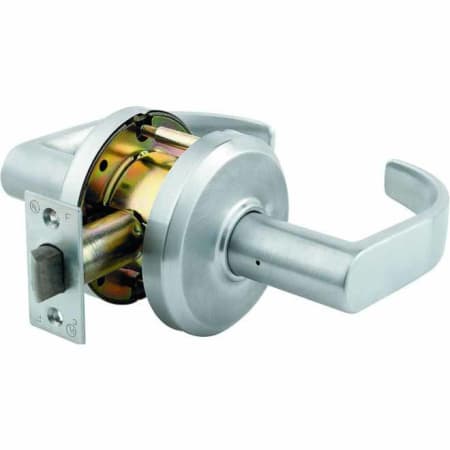

Best Access QCL 200 Series Passage Door Lever Set with "M" Lever, ANSI Strike and 2-3/4" Backset

Rosette and function may differ slightly from the product image. Please check the attached catalog for specific trim styles

Passage (ANSI F75) Function:

• Both levers are always unlocked and always free for immediate ingress and egress

Features:

• Exceeds criteria for BHMA Grade 2 certification
• Constructed of top quality materials for premium feel and durability
• Installs on doors with 1-3/8" to 2" door thickness
• Reversible handing for right or left doors
• Meets criteria of the Americans with Disabilities Act (ADA)
• Includes a square corner latch faceplate
• UL Listed 3 hour rating
• Covered by a Limited Lifetime Mechanical and 3 Year Finish warranty

Specifications:

• Backset: 2-3/4"
• Door Thickness: 1-3/8" to 2"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Handing: Reversible Left or Right
• Handle Length: 4-9/16"
• Handle Projection: 2-3/4"
• Trim Width: 3-3/8"
• Trim Height: 3-3/8"
• Latch Faceplate: Square Corner
• Material: Zinc
