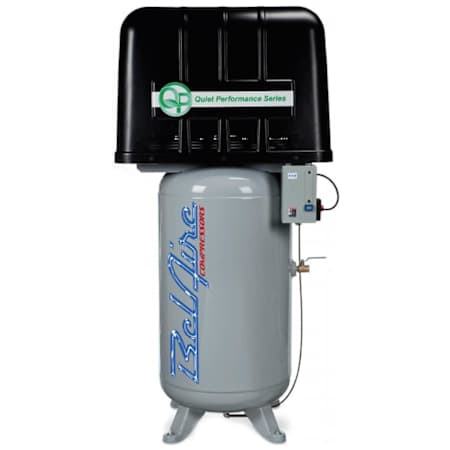

BelAire Compressors 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Quiet Performance Reciprocating Air Compressor with Vertical Tank
Model: QP318VE|Item: bci5120760
Details
Product Information:
- Quiet Compressor Air System: A piston air compressor with the noise level of a rotary screw
- Compact Design: Ideal for work environments where space is a premium
- 5-HP Single-Phase Motor (208-230V) w/ Magnetic Starter Included: Saves $$$, No need to purchase additional starter
- Low Sound Enclosure
- As low as 66 dbA, designed for a greener workplace
- Less than half the noise of a standard piston compressor
- High Strength ABS Enclosure & High Flow Fan: Keeps the compressor running cooler and quieter
- Cast Iron Cylinder: Designed for superior quality & extends the life of the pump
- 80-Gallon ASME Certified Vertical Air Tank: 100% factory tested at full pressure
- Added Features
- Low Oil Level Protection & High Temperature Shut Down
- Automatic Pressurized Tank Drain (Not Electronic)
- ASME Safety Valves & Integrated Aftercooler
- Shipped "Wet", Ready To Use
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 80"
- Width: 24-5/16"
- Length: 38-3/16"
- Product Weight: 527 lbs
- Warranty: 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 25A
- dB Rating: 66
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 18.5 |
Height | 80 in. |
Length | 38.2 in. |
Product Weight | 527 lbs. |
Width | 24.3 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 80 in. |
Length | 38.2 in. |
Product Weight | 527 lbs. |
Width | 24.3 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | Yes |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | Yes |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 25 |
Breaker Needs | 40 Amps |
Decibels | 66 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 25 |
Breaker Needs | 40 Amps |
Decibels | 66 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Residential |
