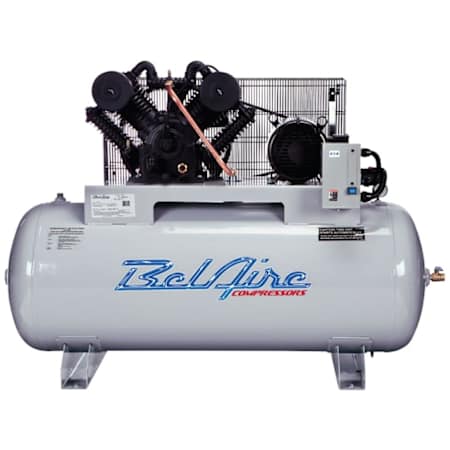

BelAire Compressors 10 HP 120 Gal 175 Max PSI Iron Series Two-Stage Stationary Electric (460 Volt 3 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 6312H4|Item: bci5120920
Details
Product Information:
- Solid Cast Iron 2 Stage Pump
- Delivers 35 CFM at 100 PSI; 32 CFM at 175 PSI
- Rugged components provide long-lasting dependability
- Automotive-Style Rod Bearings & Wrist Pins: Smoother running & more durable
- Start / Stop Pressure Switch Controls: Save time & energy
- ASME Tank & Safety Valve
- 120 gallon air reserve for big jobs and multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- 2 Year Bumper To Bumper Factory Warranty: No additional purchase necessary
- Fully Enclosed Belt Guard: Protects the belt & the operator
- Manual Air Tank Drain: Makes tank simple to maintain
- 460 3-Phase Power
- Easily wires into your 460V 3-phase system
- CPXHT50 dryer recommended (not included)
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 49"
- Width: 24"
- Length: 73"
- Product Weight: 830 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 35
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Voltage: 460V
- Voltage: 460V
Dimensions and Measurements
CFM | 35 |
Height | 49 in. |
Length | 73 in. |
Product Weight | 830 lbs. |
Width | 24 in. |
Dimensions and Measurements
CFM | 35 |
Height | 49 in. |
Length | 73 in. |
Product Weight | 830 lbs. |
Width | 24 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
