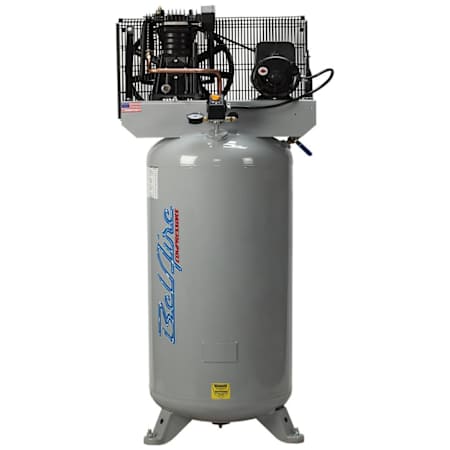

BelAire Compressors 5 HP 60 Gal 165 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: 4916V|Item: bci5130427
Details
Specifications:
- Fuel Type: Electric
- Height: 69-11/16"
- Width: 27-3/16"
- Length: 22-7/8"
- Product Weight: 250 lbs
- Warranty: 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 16
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 16.1 |
Height | 69.7 in. |
Length | 22.9 in. |
Product Weight | 250 lbs. |
Width | 27.2 in. |
Dimensions and Measurements
CFM | 16.1 |
Height | 69.7 in. |
Length | 22.9 in. |
Product Weight | 250 lbs. |
Width | 27.2 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 165 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 165 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Manufacturer Warranty | 2 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 2 Year Residential |
