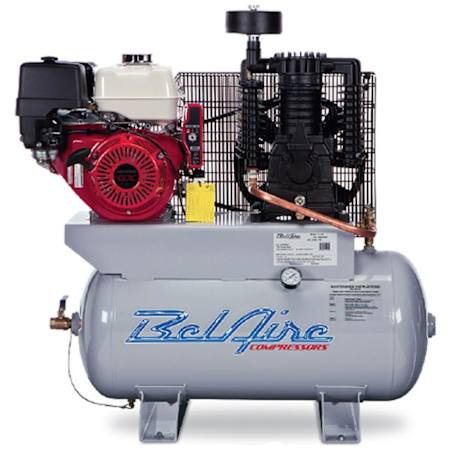

BelAire Compressors 13 HP 30 Gal 175 Max PSI 25.3 CFM Two-Stage Truck Mount Gas Reciprocating Air Compressor
Model: 3G3HHL|Item: bci5120758
Details
Product Information:
- Precision Engineered In A Rugged Package: Built for service professionals to handle the toughest situations
- 13 HP Honda Engine: Easy starting, proven reliability
- 2 Stage, Cast Iron Cylinder Pump: Produces 25.3 CFM at 100 PSI
- 12 Volt Electric Start & Recoil Start
- Wire into your ignition system or start it yourself
- Control panel is easy to operate
- Easy To Read Pressure Gauge: Located specifically for truck mounting
- Fully Enclosed Belt Guard: Protects the belt & the operator
- ASME 30 Gallon Tank & Safety Valve: 3/4" air outlet; 175 PSI maximum pressure
- EZ Pull Tank Drain: Makes tank maintenance simple & convenient
- 2 Year Full Factory Warranty
- Protects your investment
- No additional purchase necessary
- ***Battery & Cables Not Includes; Must Be Purchased Separately***
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 45"
- Width: 19"
- Length: 45"
- Product Weight: 378 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 25
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- Honda GX
- Horsepower: 13 HP
Dimensions and Measurements
CFM | 25.3 |
Height | 45 in. |
Length | 45 in. |
Product Weight | 378 lbs. |
Width | 19 in. |
Dimensions and Measurements
CFM | 25.3 |
Height | 45 in. |
Length | 45 in. |
Product Weight | 378 lbs. |
Width | 19 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
