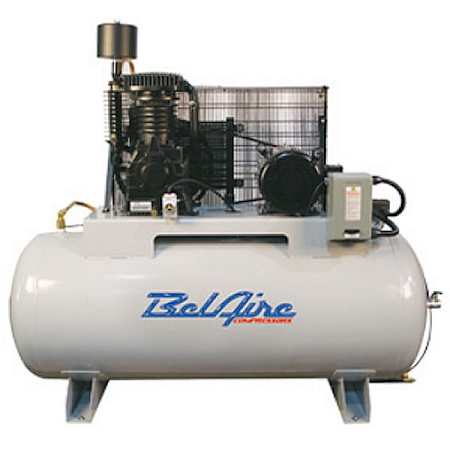

BelAire Compressors 5 HP 80 Gal 175 Max PSI Elite Series Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 318HE|Item: bci5120755
Details
Product Information:
- Solid Cast Iron Cylinder Sleeve 2-Stage Pump
- Delivers 18.5 CFM at 100 PSI
- CPXHT25 dryer recommended (not included)
- Elite Series Triple Pass Pump-Mounted Aftercooler: Cooler air helps your equipment last longer
- Start / Stop Pressure Switch Controls: Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- Elite Series Automatic Tank Drain (Not Electronic): Pressurized auto draining makes tank maintenance effortless
- Elite Series Low Oil Switch: Protects the pump; sight glass for easy maintenance
- 2 Year Bumper To Bumper Factory Warranty: No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard: Protects the belt & the operator
- 208 Volt Or 230 Volt Single Phase Power: Easily wires into either your 208V-1 or 230V-2 system
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 49"
- Width: 24"
- Length: 71"
- Product Weight: 501 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 18.5 |
Height | 49 in. |
Length | 71 in. |
Product Weight | 501 lbs. |
Width | 24 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 49 in. |
Length | 71 in. |
Product Weight | 501 lbs. |
Width | 24 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | Yes |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | Yes |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Electrical and Operational Information
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
