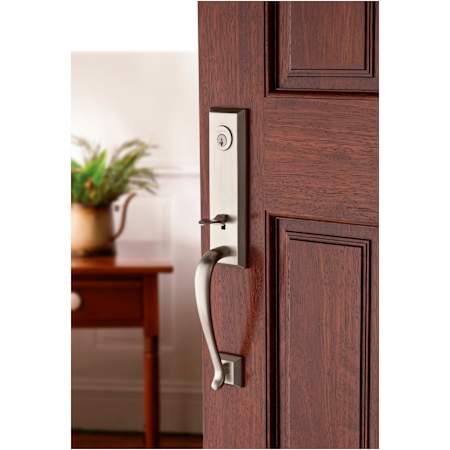

Baldwin Del Mar Right Handed Standard C Keyway Single Cylinder Keyed Entry Handleset with Federal Lever from the Reserve Collection

Single Cylinder Function: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.

Features:

• Tested to exceed ANSI/BHMA Grade 2 security
• Baldwin 5 pin C Keyway comes standard
• Designed for right handed doors
• Comes with latch faceplates for round corner, square corner, or drive-in installation
• Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
• Limited lifetime mechanical warranty and limited 25 year finish warranty

Product Technologies:

Solid Brass Construction: Baldwin Reserve Series products are constructed from solid brass - providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/4" to 2"
• Handing: Right
• Height: 16-13/16"
• Projection: 2-29/32"
• Center to Center: 5-1/2"
• Lever Length4-1/4"
• Grip Center to Center: 8-13/16"
• Backplate Height: 9-1/2"
• Backplate Width: 2-11/16"
• Cylinder: 5 Pin C Keyway

Product Variations:

• SC.DELXFED.L.TSR: Del Mar Left Handed Single Cylinder Handleset
• SC.DELXFED.R.TSR (This Model): Del Mar Right Handed Single Cylinder Handleset
