Baldwin

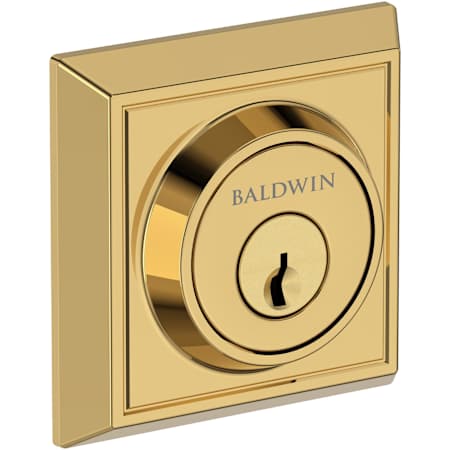

Baldwin Chamfered Square Solid Brass Double Cylinder Keyed Entry Deadbolt from the Reserve Collection Lifetime Polished Brass

Baldwin Chamfered Square Solid Brass Double Cylinder Keyed Entry Deadbolt from the Reserve Collection

Model: DCCHD003
|
Item: bci5066697

$98.00
Finish: Lifetime Polished Brass -
Special Order
Finish: Lifetime Polished Brass -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

double-cylinder-functionDouble Cylinder: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.

Features:

  • Tested to exceed ANSI/BHMA Grade 2 security requirements
  • Constructed of solid brass for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Bump resistant design
  • Covered by Baldwin's limited lifetime manufacturer warranty
  • Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 2"
  • Handing: Reversible Left or Right
  • Interior Height: 2-11/16"
  • Interior Width: 2-11/16"
  • Interior Projection: 3/4"
  • Exterior Height: 2-11/16"
  • Exterior Width: 2-11/16"
  • Exterior Projection: 3/4"
  • Latch Faceplate: Drive-In, Round Corner, or Square Corner
  • Cylinder: 5 Pin C
Additional Baldwin Links

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2"
Edge Bore
1"
Exterior Height
2.6875 in.
Exterior Projection
0.75 in.
Exterior Width
2.6875 in.
Interior Height
2.6875 in.
Interior Projection
0.75 in.
Interior Width
2.6875 in.
Product Weight
2.5 lbs.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2"
Edge Bore
1"
Exterior Height
2.6875 in.
Exterior Projection
0.75 in.
Exterior Width
2.6875 in.
Interior Height
2.6875 in.
Interior Projection
0.75 in.
Interior Width
2.6875 in.
Product Weight
2.5 lbs.

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin C
Cylinder Type
Double Cylinder
Handing
Left, Reversible, Right
Keyway
C
Latch Faceplate
Drive-In, Round Corner, Square Corner
Material
Brass
Number of Keys
2
Rosette Shape
Square
Solid Construction
Solid Brass
Theme
Traditional
Trim Design
Chamfered Square

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin C
Cylinder Type
Double Cylinder
Handing
Left, Reversible, Right
Keyway
C
Latch Faceplate
Drive-In, Round Corner, Square Corner
Material
Brass
Number of Keys
2
Rosette Shape
Square
Solid Construction
Solid Brass
Theme
Traditional
Trim Design
Chamfered Square

Manufacturer Technology

SmartKey
No

Manufacturer Technology

SmartKey
No

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
BHMA
Collection
Reserve
Country Of Origin
China
Fire Rated
No
Manufacturer Warranty
Limited Lifetime
Series
Chamfered Square

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
BHMA
Collection
Reserve
Country Of Origin
China
Fire Rated
No
Manufacturer Warranty
Limited Lifetime
Series
Chamfered Square
