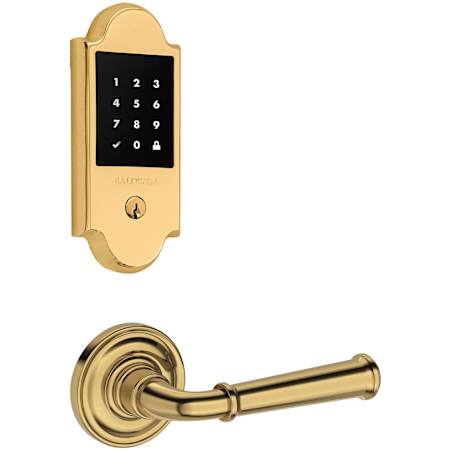

Baldwin Boulder Keyless Entry Touchscreen Deadbolt and Dunsmoor Lever Set Combo Pack with Wi-Fi
Model: 8235ZWxPSDUNRTRR003|Item: bci5204351
This package includes the following items
Details
Keypad Entry: Go keyless with the Keypad Entry. Enter a valid user code for entry. Perfect for garage/house doors, store rooms, home office and more.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and dependability
- Installs easily with all necessary mounting hardware included
- Wirelessly communicate with security and home automation systems via Z-Wave technology
- Up to 30 customizable user codes with 4-8 digits each
- Secure Screen technology provides additional security
- Covered by Baldwin's 1 year electronics and limited lifetime mechanical manufacturer warranties
- ADA compliant
- Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Lifetime Finishes™: Baldwin's multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Bore Hole: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 2"
- Handing: Reversible Left or Right
- Handle Length: 4-5/8"
- Handle Projection: 2-11/16"
- Trim Width: 2-9/16"
- Trim Height: 2-9/16"
- Product Weight: 8.39 lbs.
- Latch Faceplate: Drive-In, Round Corner, or Square Corner
- Cylinder: 5 Pin C
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
Edge Bore | 1" |
Handle Length | 4.625 in. |
Handle Projection | 2.6875 in. |
Product Weight | 8.39 lbs. |
Trim Height | 2.5625 in. |
Trim Width | 2.5625 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
Edge Bore | 1" |
Handle Length | 4.625 in. |
Handle Projection | 2.6875 in. |
Product Weight | 8.39 lbs. |
Trim Height | 2.5625 in. |
Trim Width | 2.5625 in. |
Included Components
28 Degree Latch | No |
Battery Included | Yes |
Cylinder Included | Yes |
Included Components
28 Degree Latch | No |
Battery Included | Yes |
Cylinder Included | Yes |
Characteristics and Features
App Compatibility | Amazon Alexa, Google Assistant |
Auto-Lock Capable | No |
Battery Quantity | 4 |
Concealed Screws | No |
Cylinder | 5 Pin C |
Cylinder Type | Single Cylinder |
Device Compatibility | Amazon Echo, Android, Google Home, Smartphone |
Full Backplate | No |
Function | Keyless Entry |
Handing | Left, Reversible, Right |
Handle Design | Dunsmoor |
Handle Material | Metal |
Handle Style | Lever |
Input Type | Touchscreen |
Interconnected | No |
Keyway | C |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lever Shape | Round, Straight |
Lit Keypad | Yes |
Lock Style | Single Point |
Material | Brass |
Motorized Deadbolt | Yes |
Number of Codes | 30 |
Panic Proof | No |
Rosette Shape | Round |
Smart Home | Yes |
Solid Construction | Solid Brass |
Theme | Traditional |
Trim Design | Traditional Round |
Wireless Communication | Z-Wave |
Characteristics and Features
App Compatibility | Amazon Alexa, Google Assistant |
Auto-Lock Capable | No |
Battery Quantity | 4 |
Concealed Screws | No |
Cylinder | 5 Pin C |
Cylinder Type | Single Cylinder |
Device Compatibility | Amazon Echo, Android, Google Home, Smartphone |
Full Backplate | No |
Function | Keyless Entry |
Handing | Left, Reversible, Right |
Handle Design | Dunsmoor |
Handle Material | Metal |
Handle Style | Lever |
Input Type | Touchscreen |
Interconnected | No |
Keyway | C |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lever Shape | Round, Straight |
Lit Keypad | Yes |
Lock Style | Single Point |
Material | Brass |
Motorized Deadbolt | Yes |
Number of Codes | 30 |
Panic Proof | No |
Rosette Shape | Round |
Smart Home | Yes |
Solid Construction | Solid Brass |
Theme | Traditional |
Trim Design | Traditional Round |
Wireless Communication | Z-Wave |
Manufacturer Technology
SmartKey | No |
Manufacturer Technology
SmartKey | No |
Electrical and Operational Information
Battery Size | AA |
Battery Type | Alkaline |
Power Source | Battery |
Electrical and Operational Information
Battery Size | AA |
Battery Type | Alkaline |
Power Source | Battery |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.36 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, BHMA |
Collection | Estate, Reserve |
Country Of Origin | China, Mexico |
Fire Rated | No |
Manufacturer Warranty | 1 Year Electronics, Limited Lifetime Mechanical |
Series | Boulder, Dunsmoor |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.36 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, BHMA |
Collection | Estate, Reserve |
Country Of Origin | China, Mexico |
Fire Rated | No |
Manufacturer Warranty | 1 Year Electronics, Limited Lifetime Mechanical |
Series | Boulder, Dunsmoor |
