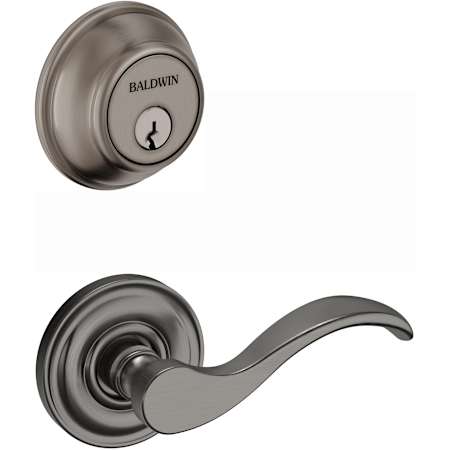

Baldwin Baltimore Keyless Entry Engineered by Level Deadbolt and 5455V Lever Set Combo Pack with Wi-Fi
Model: 8231LLWBTx5455V076PASS|Item: bci5204324
This package includes the following items
Details
Combo Pack: Combo packs come with a separate deadbolt and knob/lever. These versatile keyless entry locks are equipped with electronic bolts that are subtle and unobtrusive. They can be locked and unlocked from your mobile device, but also from the exterior using a key in the deadbolt and from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.
Features:
- Tested to exceed ANSI/BHMA AAA (Handle) and Grade 2 (Deadbolt) security requirements
- Constructed of solid brass for durability and dependability
- Installs easily with all necessary mounting hardware included
- Ideal for users without a smart hub who want full remote access
- Covered by Baldwin's 1 year electronics and limited lifetime manufacturer warranties
- ADA compliant
- Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Lifetime Finishes™: Baldwin's multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Bore Hole: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Handle Length: 4"
- Handle Projection: 2-1/2"
- Trim Width: 2-5/8"
- Trim Height: 2-5/8"
- Product Weight: 6.45 lbs.
- Latch Faceplate: Square Corner
- Cylinder: 5 Pin C
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 3.985 in. |
Handle Projection | 2.506 in. |
Product Weight | 6.45 lbs. |
Trim Height | 2.625 in. |
Trim Width | 2.625 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 3.985 in. |
Handle Projection | 2.506 in. |
Product Weight | 6.45 lbs. |
Trim Height | 2.625 in. |
Trim Width | 2.625 in. |
Included Components
28 Degree Latch | No |
Battery Included | Yes |
Cylinder Included | Yes |
Included Components
28 Degree Latch | No |
Battery Included | Yes |
Cylinder Included | Yes |
Characteristics and Features
App Compatibility | Amazon Alexa, Apple HomeKit, Google Home, Matter, SmartThings |
Auto-Lock Capable | Yes |
Battery Quantity | 1 |
Concealed Screws | No |
Cylinder | 5 Pin C |
Cylinder Type | Single Cylinder |
Device Compatibility | Amazon Echo, Android, Apple iOS Device, Google Home, Smartphone |
Full Backplate | No |
Function | Keyless Entry |
Handing | Left, Reversible, Right |
Handle Design | 5455V |
Handle Material | Metal |
Handle Style | Lever |
Input Type | Mobile App |
Interconnected | No |
Keyway | C |
Latch Faceplate | Square Corner |
Lever Shape | Wave |
Lock Style | Single Point |
Material | Brass, Steel |
Motorized Deadbolt | Yes |
Panic Proof | No |
Rosette Shape | Round |
Smart Home | Yes |
Solid Construction | Solid Brass |
Theme | Contemporary, Traditional, Transitional |
Trim Design | 5048 |
Wireless Communication | Bluetooth, WiFi |
Characteristics and Features
App Compatibility | Amazon Alexa, Apple HomeKit, Google Home, Matter, SmartThings |
Auto-Lock Capable | Yes |
Battery Quantity | 1 |
Concealed Screws | No |
Cylinder | 5 Pin C |
Cylinder Type | Single Cylinder |
Device Compatibility | Amazon Echo, Android, Apple iOS Device, Google Home, Smartphone |
Full Backplate | No |
Function | Keyless Entry |
Handing | Left, Reversible, Right |
Handle Design | 5455V |
Handle Material | Metal |
Handle Style | Lever |
Input Type | Mobile App |
Interconnected | No |
Keyway | C |
Latch Faceplate | Square Corner |
Lever Shape | Wave |
Lock Style | Single Point |
Material | Brass, Steel |
Motorized Deadbolt | Yes |
Panic Proof | No |
Rosette Shape | Round |
Smart Home | Yes |
Solid Construction | Solid Brass |
Theme | Contemporary, Traditional, Transitional |
Trim Design | 5048 |
Wireless Communication | Bluetooth, WiFi |
Manufacturer Technology
Built-In Alarm | No |
SmartKey | No |
Manufacturer Technology
Built-In Alarm | No |
SmartKey | No |
Electrical and Operational Information
Battery Size | CR2 |
Battery Type | Lithium |
Power Source | Battery |
Electrical and Operational Information
Battery Size | CR2 |
Battery Type | Lithium |
Power Source | Battery |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | No |
BHMA Certification | AAA |
Certifications | BHMA |
Collection | Estate, Level |
Country Of Origin | Mexico |
Fire Rated | No |
Manufacturer Warranty | 1 Year Electronics, Limited Lifetime |
Series | 5455V, Baltimore |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | No |
BHMA Certification | AAA |
Certifications | BHMA |
Collection | Estate, Level |
Country Of Origin | Mexico |
Fire Rated | No |
Manufacturer Warranty | 1 Year Electronics, Limited Lifetime |
Series | 5455V, Baltimore |
