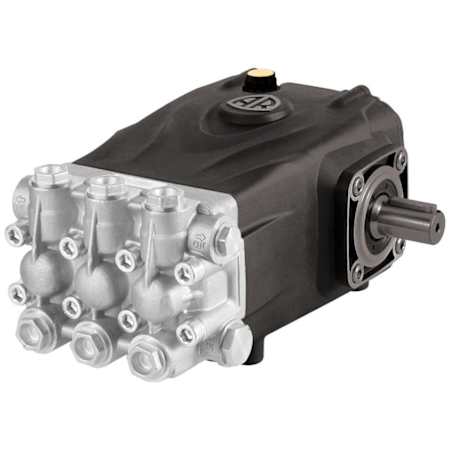

AR North America RG 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Product Information:

• High Quality Replacement For Worn Out Pumps
  • Professional quality at an affordable price
  • Save money by replacing the pump instead of buying a new power washer


• Triplex Plunger Pump
  • Strong, long lasting and corrosion resistant
  • Nickel plated head suitable for a wide range of conditions
  • Constructed with frictionless aluminum connecting rods and ceramic pistons
  • Oversized, piston guides for smoother stroke and better oil seal performance


• Extra-Thick Ceramic Plungers
  • Double gasket sealing system and lip oil seals
  • Suction and delivery valves with larger water passages.


• Durable Components
  • Top quality, oversized tapered roller bearings
  • Ruggedly designed crankcase with deep fins for better cooling
  • Oversized shaft with long end section for better torque transmission


• 24 x 40mm Solid Shaft Handles 1450 RPM
  • Power EBHP 11
  • Oil capacity 32 ounces
  • Max Temperature 140° F
  • Plunger bore 18mm, plunger stroke 14.6mm


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Grade: Professional
• Fuel Type: Gas

Dimensions:

• Height: 5-1/2"
• Width: 9-1/2"
• Length: 11-11/16"
• Product Weight: 27.5 lbs
• Outflow Connection: 3/8" Threaded (Female)
