The American Standard 3352.160.020 has been discontinued
** See similar or replacement items below **
Item # bci396148

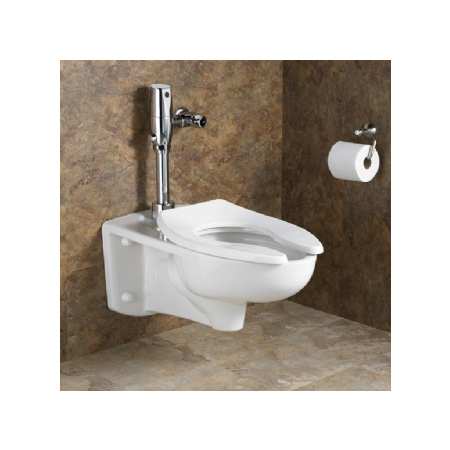

American Standard Afwall One-Piece Elongated Wall-Mounted Flushometer Valve Toilet Bowl Only with Bedpan Fittings
Model: 3352.160.020|Item: bci396148
from theAfwall Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Afwall One-Piece Elongated Wall-Mounted Flushometer Valve Toilet Bowl Only with Bedpan Fittings
Afwall Elongated Bedpan Toilet, Less Seat and Flushometer
- Elongated wall-mounted flushometer valve toilet
- Slotted rim for bedpan holding
- Tested to 1000 lbs. static load
- EverClean™ Antimicrobial ceramic glaze
- Condensation channel
- Powered direct-fed siphon jet flush action
- 1-1/2" inlet spud
- Fully glazed 2-1/8" trapway
- 11" x 12" water surface area
- Nominal Dimensions 26" x 15" x 14" (660 x 381 x 356mm)
Manufacturer Resources
Specification SheetDimensions and Measurements
Bowl Height | 15 in. |
Depth | 18.5, 26 in. |
Extension | 26 in. |
Gallons Per Flush | 1.6 |
Height | 15 in. |
Length | 26 in. |
Rough In | 5.25 in. |
Spud Size | 1.5 in. |
Trapway | 2.125, 2.13 in. |
Width | 14 in. |
Dimensions and Measurements
Bowl Height | 15 in. |
Depth | 18.5, 26 in. |
Extension | 26 in. |
Gallons Per Flush | 1.6 |
Height | 15 in. |
Length | 26 in. |
Rough In | 5.25 in. |
Spud Size | 1.5 in. |
Trapway | 2.125, 2.13 in. |
Width | 14 in. |
Characteristics and Features
Bowl Shape | Elongated |
Configuration | Bowl Only, One Piece |
Flush Type | Siphon Jet |
Installation Type | Wall Mounted |
Material | Vitreous China |
Spud Placement | Top |
Trip Lever Placement | Top |
Characteristics and Features
Bowl Shape | Elongated |
Configuration | Bowl Only, One Piece |
Flush Type | Siphon Jet |
Installation Type | Wall Mounted |
Material | Vitreous China |
Spud Placement | Top |
Trip Lever Placement | Top |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Low Lead Compliant | No |
WaterSense Certified | No |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Low Lead Compliant | No |
WaterSense Certified | No |
