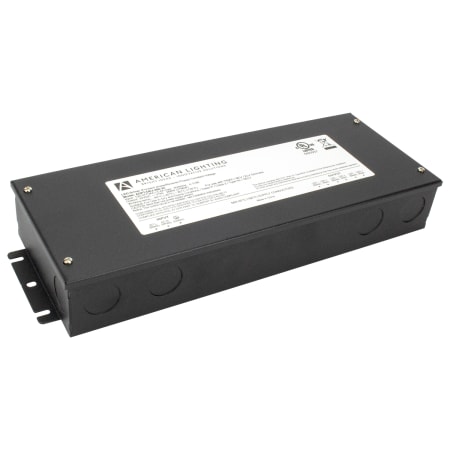

American Lighting Adaptive Series 288 Watt LED Power Supply - 24 Volt

• 288 Watt, 24V LED Driver

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

Features:

• 24V DC constant voltage hardwire driver
• Dimmable with standard TRIAC, MLV, and ELV dimmers
• Forward phase and reverse phase compatible
• Short circuit, over-load, and over-temperature protections
• Slim, compact aluminum housing design
• Integrated wiring compartment
• PWM Output with 10-100% load operation
• Free air convection cooling
• Class 2, Class P, Type HL, FCC compliant, cULus Listed, damp location rated
• Covered under a 2 year manufacturer warranty

Dimensions:

• Height: 1-1/16"
• Width: 10-15/16"
• Depth: 4-1/4"

Electrical Specifications:

• Wattage: 288
• Voltage: 100, 277
