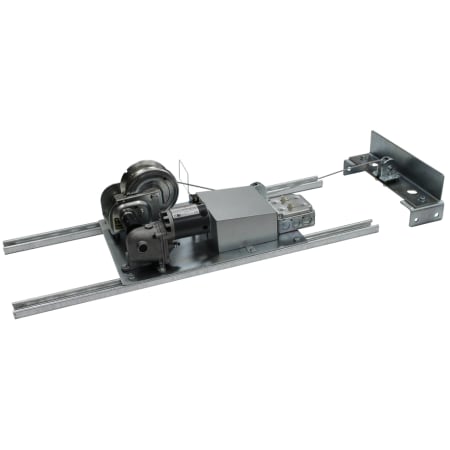

Aladdin Light Lift Residential Grade 300LB Remote Mount Motorized Light Fixture Lift System

Features:

• Motor mounts in accessible location up to 25 feet away from fixture location
• 1650 watt light wattage capacity
• 25 foot Romex wire
• 300lbs maximum capacity
• Includes: Keyswitch controller (AL-KSC)
  • Smart Conroller Available for purchase seperately (AL-SLC)

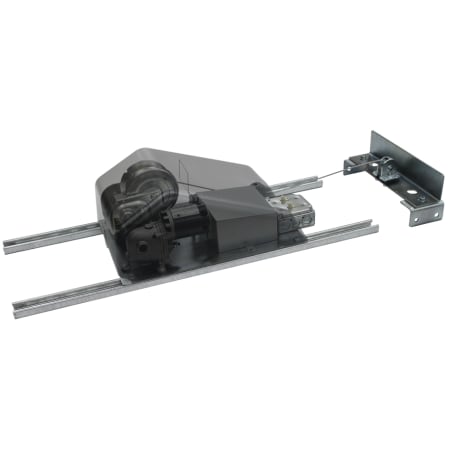

• Plastic dust cover
• 65 foot winch cable and 50 foot controller wire

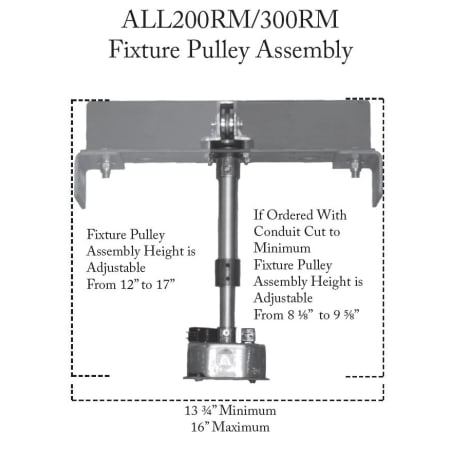

• Chandelier pulley assembly system included

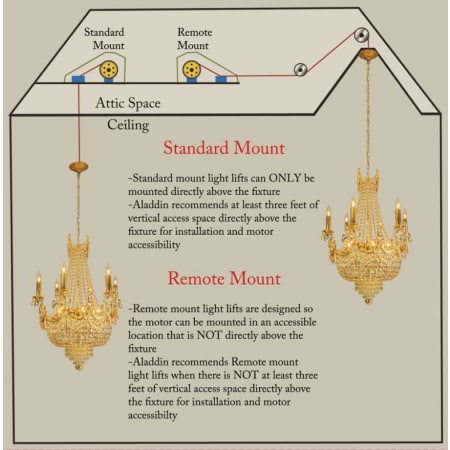

• Remote mount light lift: used in limited access installations
• Zinc plated 4/1 gear ratio winch

Dimensions:

• Height: 9"
• Width: 14"
• Depth: 19"
• Cable Length: 780"
• Wire Length: 600"

Electrical Specifications:

• Voltage: 110
• Amperage: 1.3
• UL Listed: Yes
• Motor HP: 0.06
• Mount Type: Remote
• Motor Frequency: 50, 60
• Weight Capacity: 300 lbs
• Electrical: Circuit boards rated min V-0, conformal coated; all components and board are UL listed and regulated
• Wiring: lead free, RoHS compliant; all wiring and harnesses are UL listed and regulated
• Must be installed by licensed electricians
