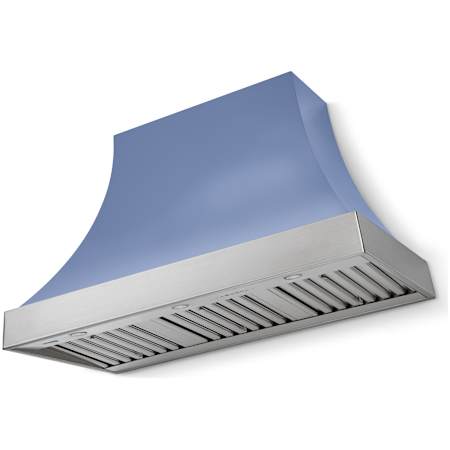

AGA Cascade Series 1,200 CFM 48 Inch Wide Wall Mounted Range Hood with 3 Speeds
Model: AH4830CAC-CBB-BN-NB|Item: bci5175737














Details
Elegant and powerful, AGA rangehoods provide optimal ventilation and style to any kitchen. Available in 4 stunning designs, 14 expressive colors, 5 exquisite trim options and in both 36" and 48" models. A large 3 speed blower operating at lower RPM maintains quiet operation, while bright LED lighting (drawing only 6 watts each) offers natural looking, 3000K color spectrum. Electronic controls for all the hood features assures overall ease of operation. The commercial-style baffle filters effectively remove airborne contaminants, while detergent inlet holes and grease exit holes guarantee superior dishwasher-safe cleaning.
Features:
- Blower outputs up to 1200 CFM to keep your kitchen free of cooking fumes and odors
- Dishwasher safe, commercial style baffle filters for effectively removing airborne contaminants. Detergent inlet holes and grease exit holes in baffle filters for superior dishwasher cleaning
- Made in America
- Push button controls allow you to easily set the power level of your range hood
- 3 available speeds provide just the right amount of ventilation
- 3 LED lights illuminate the cooking area (bulbs included), 3000K color spectrum
- Complements items from the Cascade collection
- Mounting bars at top and bottom allow for attaching to stud supports. Open top and back design for centered duct location or offset top duct and/or rear offset discharge
- LED light bulbs draw only 6 watts each and energy efficient motors draw only 2.5 amps
- Covered under a 2 year limited parts and labor manufacturer warranty
Specifications:
- CFM: 1,200
- Nominal Width: 48"
- Width: 48"
- Height: 30"
- Depth: 24"
- Duct Size: 10" Round
- Ceiling Height: 30" - 36"
- Height Above Cooktop: 24"
- Amperage: 5.40A
- Voltage: 120V
Dimensions and Measurements
Ceiling Height (Max) | 36 in. |
Ceiling Height (Min) | 30 in. |
CFM | 1200 |
CFM (High) | 1200 |
Depth | 24 in. |
Duct Size | 10" Round |
Height | 30 in. |
Height Above Cooktop | 24" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 48 in. |
Product Weight | 124 lbs. |
Width | 48 in. |
Dimensions and Measurements
Ceiling Height (Max) | 36 in. |
Ceiling Height (Min) | 30 in. |
CFM | 1200 |
CFM (High) | 1200 |
Depth | 24 in. |
Duct Size | 10" Round |
Height | 30 in. |
Height Above Cooktop | 24" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 48 in. |
Product Weight | 124 lbs. |
Width | 48 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Number of Bulbs | 3 |
Panel Ready | No |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Number of Bulbs | 3 |
Panel Ready | No |
Electrical and Operational Information
Amperage | 5.40 |
Speeds | 3 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 5.40 |
Speeds | 3 |
Voltage | 120 |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Cascade |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 2 Year Limited Parts and Labor |
Outdoor Approved | No |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Cascade |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 2 Year Limited Parts and Labor |
Outdoor Approved | No |
