Zoeller
Zoeller 1/3 HP All Cast Iron Submersible Sump Pump with Vertical Float Switch (9' Cord) N/A
Zoeller 1/3 HP All Cast Iron Submersible Sump Pump with Vertical Float Switch (9' Cord) N/A
Alternate Image

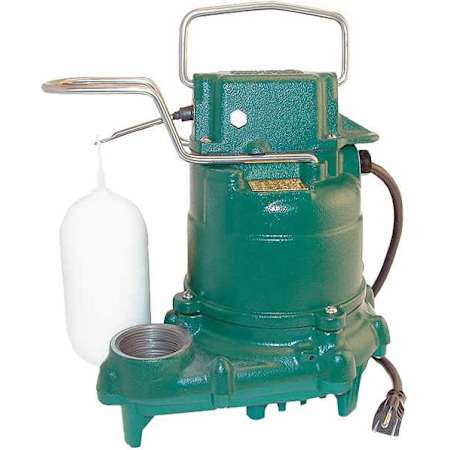

Zoeller 1/3 HP All Cast Iron Submersible Sump Pump with Vertical Float Switch (9' Cord)

Model: M57
|
Item: bci5171522

$255.00
28 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Today, May 20th
-
Return & Shipping Details

Details

Features:

  • Model 57 All Cast Iron Switch Case, Motor, Pump Housing and Base: Heavy duty design for maximum heat dissipation and extended life

  • Automatic Submersible Sump Pump: Ideal for average water removal

  • 3/10 HP Shaded Pole Motor (1550 RPM): Energy efficient, only draws less than 10 Amps

  • Thermally Protected Motor w/ Automatic Reset: Oil-filled and hermetically sealed to prevent overheating

  • Reliable Float Operated, 2-Pole Mechanical Float Switch: Stainless steel switch arm, guard and handle so rust is not an issue

  • 1-1/2" NPT Discharge and Non-Clogging Cast Iron Vortex Impeller: Screenless, bottom intake designed to pass solids up to 1/2"

  • U/L Oil Fed Cast Iron Bearings and Carbon/Ceramic Shaft Seal
    • Provides durability, less heat for extended protection
    • Neoprene "O" Ring

  • Keeps a watertight seal between motor and pump housing
    • 9' Power Cord
    • UL Listed 3-wire cord w/ 3-prong plug

  • Industry Leading Quality Control - Pressure Tested After Assembly

  • 3-Year Warranty

Additional Zoeller Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
9 ft.
Discharge Diameter
1.5, 2 in.
Flow Rate (GPM)
43
Height
10.2 in.
Length
11.5 in.
Product Weight
20 lbs.
Width
7.5 in.

Dimensions and Measurements

Cord Length
9 ft.
Discharge Diameter
1.5, 2 in.
Flow Rate (GPM)
43
Height
10.2 in.
Length
11.5 in.
Product Weight
20 lbs.
Width
7.5 in.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Pump Material
Cast Iron
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Pump Material
Cast Iron
Submersible
Yes

Electrical and Operational Information

Amperage
4.8
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Horsepower
0.33
Starting Amps
25.9 Amps
Voltage
120

Electrical and Operational Information

Amperage
4.8
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Horsepower
0.33
Starting Amps
25.9 Amps
Voltage
120

Warranty and Product Information

Manufacturer Warranty
3

Warranty and Product Information

Manufacturer Warranty
3
