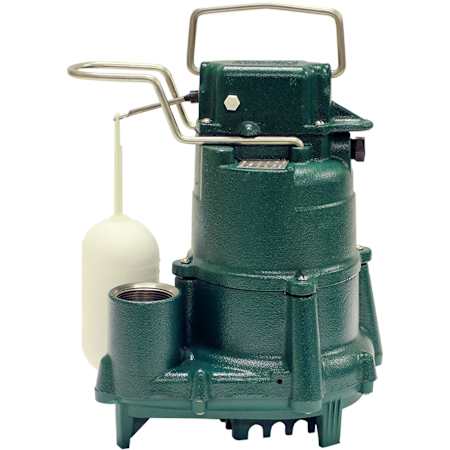

Zoeller Model 98 Automatic Submersible Sump Pump 0.50 HP, 115V
Model: 98-0077|Item: bci5108304
Details
Zoeller Model M98 Sump Pump with a 15' cord is designed to remove unwanted groundwater in basement sump applications. The professional-grade, 1/2 HP M98 is the industry standard when you need a higher flow sump pump. Known as the "Flow-Mate" M98, it is a fully automatic float-operated sump pump. The white polypropylene float is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary.The Model 98's switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 98 is able to withstand demanding, high flow basement sump applications.Every pump is submerged in water and tested to its published performance curve, ensuring it meets Zoeller's expectations and delivers peace of mind right-out-of-the-box.
Features:
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Automatic high flow sump pump with a time-tested, preset, built-in snap action switch that makes for easy installation
- Corrosion resistant engineered plastic vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
- Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
- Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- Stainless steel screws, switch arm, handle and hardware to prevent rust and corrosion over the life of the pump
- 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you protection over your investment and the peace of mind you expect in a quality product
Specifications:
- Horsepower: 0.5
- Impeller Material: Engineered Plastic
- Discharge Diameter: 1-1/2"
- Maximum Head Height: 23 ft
- Amperage: 9.4
Dimensions and Measurements
Cord Length | 15 ft. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 72 |
Maximum Head Height | 23 ft. |
Dimensions and Measurements
Cord Length | 15 ft. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 72 |
Maximum Head Height | 23 ft. |
Characteristics and Features
Impeller Material | Plastic |
Material Shaft | Steel |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Impeller Material | Plastic |
Material Shaft | Steel |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.4 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
Electrical and Operational Information
Amperage | 9.4 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
Warranty and Product Information
Country Of Origin | USA |
Manufacturer Warranty | 3 Years |
Warranty and Product Information
Country Of Origin | USA |
Manufacturer Warranty | 3 Years |
