Zoeller M98 - 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float Switch (35' Cord) N/A
Zoeller M98 - 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float Switch (35' Cord) N/A
Alternate Image

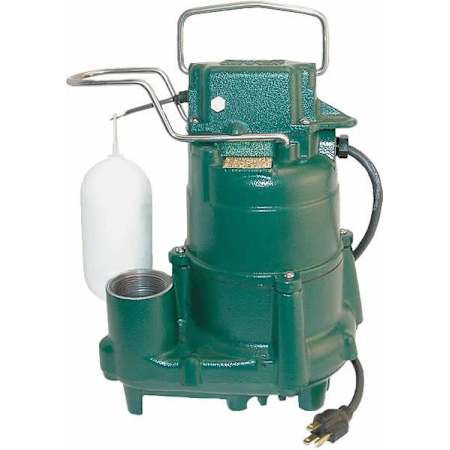

Zoeller M98 - 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float Switch (35' Cord)

Model: 98-0014
|
Item: bci5171645

$409.50
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • Automatic Submersible Cast Iron Sump Pump: Offers years of reliable, trouble-free operation

  • Engineered Thermoplastic Base: Designed to prevent base corrosion in harsh environments

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly

  • Thermally Protected, Permanent Split Capacitor Motor: Oil-filled and hermetically sealed to prevent overheating

  • Vertical Float Switch: Solid and buoyant polypropylene design

  • Carbon and Ceramic Shaft Seal: Assures maximum protection for extended pump life

  • Powder Coated Epoxy Finish: Provides a corrosion resistant exterior

  • Clog-Resistant Design
    • No screen to interfere with flowing debris
    • Capable of passing 1/2" diameter solids

  • Industry Leading Quality Control: Entire unit is pressure tested after assembly

  • 35' Power Cord

Additional Zoeller Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
35 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
72
Height
12.06 in.
Product Weight
38 lbs.
Width
7.875 in.

Dimensions and Measurements

Cord Length
35 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
72
Height
12.06 in.
Product Weight
38 lbs.
Width
7.875 in.

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No
Pump Material
Cast Iron
Submersible
Yes

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No
Pump Material
Cast Iron
Submersible
Yes

Electrical and Operational Information

Amperage
4.7
Backup GPH @ 0 feet
4320 GPH
Backup GPH @ 10 feet
3660 GPH
Backup GPH @ 15 feet
2700 GPH
Backup GPH @ 20 feet
1500 GPH
Backup GPH @ 5 feet
4320 GPH
Horsepower
0.5
Starting Amps
29.2 Amps
Voltage
120

Electrical and Operational Information

Amperage
4.7
Backup GPH @ 0 feet
4320 GPH
Backup GPH @ 10 feet
3660 GPH
Backup GPH @ 15 feet
2700 GPH
Backup GPH @ 20 feet
1500 GPH
Backup GPH @ 5 feet
4320 GPH
Horsepower
0.5
Starting Amps
29.2 Amps
Voltage
120

Warranty and Product Information

Manufacturer Warranty
3

Warranty and Product Information

Manufacturer Warranty
3
