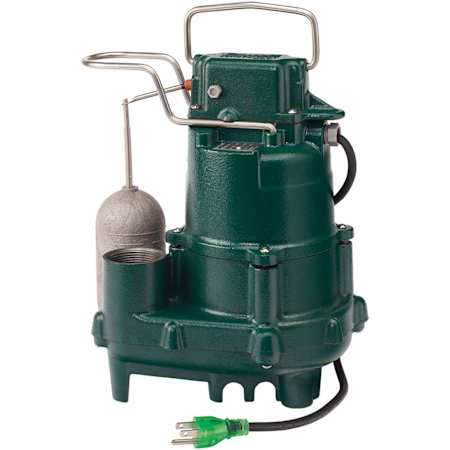

Zoeller 1/2 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch
Model: 95-0001|Item: bci3629298
Details
Zoeller Model M95 Sump Pump is a fully automatic 1/2 HP pump for use in high flow basement sump applications. This 0. 5 HP Zoeller sump pump is packed with features, including the most advanced switch technology available. The green Zoeller LED plug at the end of the power cord allows you to see that it has power even when it is installed in a dark basement or crawl space. By design, the solid float cannot become waterlogged. So it is always buoyant and able to turn the pump on when necessary. The identification tag, float guard, handle, float switch arm, and hardware are made of high-quality corrosion resistant stainless steel. Every pump is submerged in water and tested to its published performance curve. Designed to deliver peace of mind right out of the box.
Features:
- Comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
- Corrosion resistant engineered plastic vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
- Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
- Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
- 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 5-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Specifications:
- Horsepower: 0.5
- Impeller Material: Engineered Plastic
- Discharge Diameter: 1-1/2"
- Maximum Head Height: 26 ft
- Amperage: 10.5
Dimensions and Measurements
Cord Length | 180 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 80 |
Height | 12.125 in. |
Length | 12.6 in. |
Maximum Flow Rate | 80 GPM |
Maximum Head Height | 26 ft. |
Product Weight | 38 lbs. |
Water Connection | 1-1/2" |
Width | 10.094 in. |
Dimensions and Measurements
Cord Length | 180 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 80 |
Height | 12.125 in. |
Length | 12.6 in. |
Maximum Flow Rate | 80 GPM |
Maximum Head Height | 26 ft. |
Product Weight | 38 lbs. |
Water Connection | 1-1/2" |
Width | 10.094 in. |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material | Cast Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material | Cast Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 10.5 |
Backup GPH @ 0 feet | 2680 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2680 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
Operating Temperature (Max) | 130 °F |
Starting Amps | 29.2 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 10.5 |
Backup GPH @ 0 feet | 2680 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2680 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
Operating Temperature (Max) | 130 °F |
Starting Amps | 29.2 Amps |
Voltage | 120 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 95 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 95 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 |
