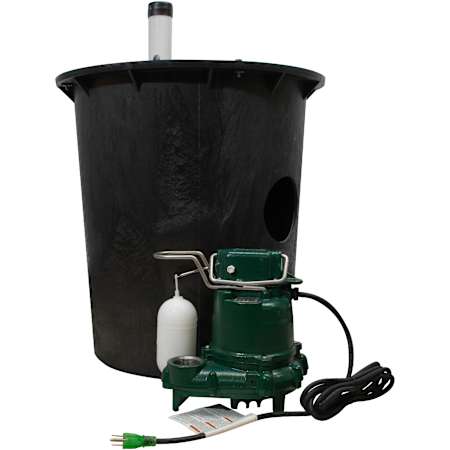

Zoeller Radon Model 900 Basement Preassembled Sump Pump Package System
Model: 900-0001|Item: bci5108297
Details
Zoeller Radon Model 900 is a preassembled system for basement sump applications. It includes all of the key components required for a complete basement sump pit installation. The basin is made of high grade polyethylene and the cover is made of poly structural foam. This package is ideal for those looking for a job ready system in a basement sump radon application. The package is designed for below ground installation with burial flush-to-grade. A finished installation will include an access cover level with the final surface of the floor. The Model 900 package comes preassembled with Zoeller most popular sump pump, the 3/10 HP automatic Model 53 comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance. A 1-1/2" discharge pipe that includes a predrilled 3/16" weep hole to prevent the pump from becoming airlocked is pre-plumbed in the system. The pump's electrical cord is sealed in the cover and a predrilled 3" vent hole is included in the cover as well. The cover is sealed and bolted in place prior to shipment. To protect all of the internal components during shipping, each basin is filled with environmentally friendly packing peanuts to ensure things remain in place during transit. The packing material is water soluble so just add water and they'll dissolve. Job ready, fast, and easy installation!
Features:
- Includes the automatic 3/10 HP Model 53 primary pump which comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance
- Pump switch installed 180° from the 4" inlet to prevent the float from being affected by the inflow of water
- Discharge pipe is plumbed with a pre-drilled 3/16” weep hole to prevent the pump from becoming air locked
- The Model 53 sump pump's 115 V electrical cord seal is sealed in the cover
- The polyethylene cover comes sealed and bolted down so the system is water tight from the time of arrival
- Includes our most popular automatic, cast iron 3/10 HP sump pump with an engineered plastic base and vortex impeller design capable of handling 1/2" spherical solids
- The Model 53 sump pump includes a powder-coated epoxy finish which provides corrosion-resistance and extends the pump's life in harsh basement sump environments
- The Model 53 is 100% factory tested before it is installed in the basin
- 3-year limited warranty giving you extra protection and more peace of mind
Specifications:
- Horsepower: 0.3
- Impeller Material: Engineered Plastic
- Discharge Diameter: 1-1/2"
- Maximum Head Height: 19.25 ft
- Amperage: 9.7
Manufacturer Resources
Installation InstructionsDimensions and Measurements
Cord Length | 9 ft. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 43 |
Maximum Head Height | 19.25 ft. |
Dimensions and Measurements
Cord Length | 9 ft. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 43 |
Maximum Head Height | 19.25 ft. |
Characteristics and Features
Impeller Material | Plastic |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Impeller Material | Plastic |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.7 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.3 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Electrical and Operational Information
Amperage | 9.7 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.3 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Warranty and Product Information
Country Of Origin | USA |
Manufacturer Warranty | 3 Years |
Warranty and Product Information
Country Of Origin | USA |
Manufacturer Warranty | 3 Years |
