Zoeller
Zoeller 1/3 HP Cast Iron Submersible Sump Pump with Vertical Float Switch with 35' Cord N/A
Zoeller 1/3 HP Cast Iron Submersible Sump Pump with Vertical Float Switch with 35' Cord N/A
Alternate Image
Alternate Image

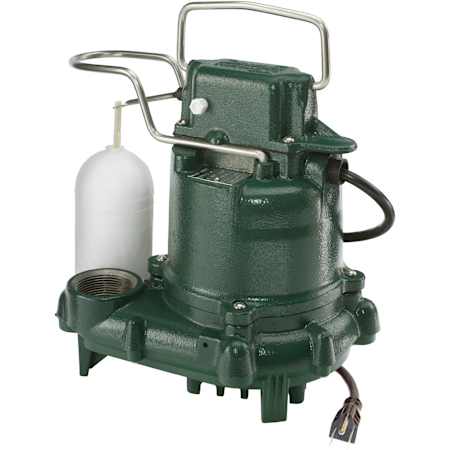

Zoeller 1/3 HP Cast Iron Submersible Sump Pump with Vertical Float Switch with 35' Cord

Model: 53-0018
|
Item: bci4895824

$284.25
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Zoeller Model M53 Sump Pump with a 35' cord is designed to remove unwanted groundwater in basement sump applications. The professional-grade, 0. 30 HP M53 is the industry standard when it comes to primary sump pumps. Known as the "Mighty-Mate" M53, it is a fully automatic float-operated sump pump. The white polypropylene float is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary. The Model 53's switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 53 is able to withstand the most demanding basement sump applications. Every pump is submerged in water and tested to its published performance curve, ensuring it meets Zoeller's expectations and delivers peace of mind right out of the box.

Features:

  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
  • Corrosion resistant engineered plastic vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
  • Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
  • Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
  • Comes with a 35 foot cord

Specifications:

  • Horsepower: 0.3
  • Impeller Material: Engineered Plastic
  • Discharge Diameter: 1-1/2"
  • Maximum Head Height: 19 ft
  • Amperage: 9.7
Additional Zoeller Links

Dimensions and Measurements

Cord Length
35 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
43
Height
18.4 in.
Length
32 in.
Maximum Head Height
19 ft.
Product Weight
94 lbs.
Width
8.4 in.

Dimensions and Measurements

Cord Length
35 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
43
Height
18.4 in.
Length
32 in.
Maximum Head Height
19 ft.
Product Weight
94 lbs.
Width
8.4 in.

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No
Material Shaft
Steel
Pump Material
Cast Iron
Submersible
Yes
Water Connection Type
NPT

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No
Material Shaft
Steel
Pump Material
Cast Iron
Submersible
Yes
Water Connection Type
NPT

Electrical and Operational Information

Amperage
9.7
Backup GPH @ 0 feet
2580 GPH
Backup GPH @ 10 feet
1920 GPH
Backup GPH @ 15 feet
1260 GPH
Backup GPH @ 20 feet
420 GPH
Backup GPH @ 5 feet
2340 GPH
Electrical Phases
1
Horsepower
0.33
Maximum Fluid Temperature
130 °F
Motor RPM
1550
Starting Amps
25.9 Amps
Voltage
120

Electrical and Operational Information

Amperage
9.7
Backup GPH @ 0 feet
2580 GPH
Backup GPH @ 10 feet
1920 GPH
Backup GPH @ 15 feet
1260 GPH
Backup GPH @ 20 feet
420 GPH
Backup GPH @ 5 feet
2340 GPH
Electrical Phases
1
Horsepower
0.33
Maximum Fluid Temperature
130 °F
Motor RPM
1550
Starting Amps
25.9 Amps
Voltage
120

Warranty and Product Information

Collection
Model 53
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Years

Warranty and Product Information

Collection
Model 53
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Years
