Zoeller ProPack63 - 3/10 HP Combo Primary and Aquanot Fit Backup Pump System with WiFi
Model: 508-0020|Item: bci4674102
Details

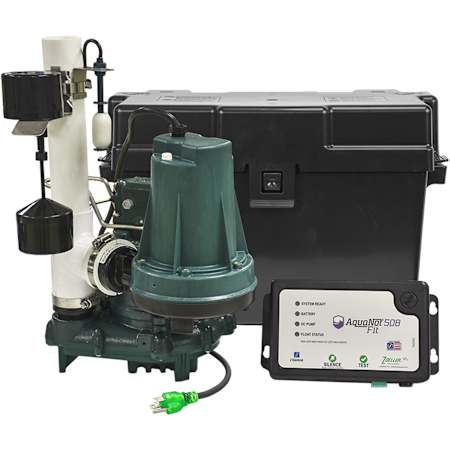

The AquaNot® Fit 508 ProPak with Model M63 primary pump is a complete system for basement sump applications. The system is designed to provide premium protection in basement sump applications at a mid-level price. The AquaNot Fit 508 ProPak includes two pumps, battery box, controller, check valve, and pipe. The primary pump is the 3/10 HP automatic Model M63 which comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance. The backup pump is the Model 508. In a high-water flow event, the 12 Volt battery-powered Model 508 is designed to provide backup support to the Model 63. In the event of a power outage, the Model 508 will take over. The system is self-monitoring and provides alert conditions for occurrences such as a power outage, high water condition, a switch obstruction and more. The AquaNot Fit 508 can provide 6 hZoellers of continuous pump run time. This equates to 2 days of backup sump pump protection for most homes. For added redundancy, this system is equipped with connections for a second pump run float. With the AquaNot Fit 508, you can be 100% confident in Zoeller flood prevention protection. For added peace of mind, the AquaNot Fit 508 ProPak is 100% Factory Tested.
Features:
- Includes the 3/10 HP Model M63 primary pump which comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance
- A self-testing 12 V DC backup sump pump for basement sump applications
- A preassembled system of 2 pumps, floats, and a controller designed to work together in a reliable and efficient manner
- Provides backup support to a primary sump pump when the primary pump is unable to keep up with the water flow or during a power outage
- Able to provide push notification alerts for a whole host of occurrences that can be selected based on your personal preferences
- Z Control monitoring and testing capability can be shared with a local Contractor who can monitor alarms and respond to alerts on behalf of the Homeowner
- A smart, intelligent, and innovative controller monitors pump activation, high water alarm conditions, air locked pump events, power outages and system faults
- 24/7 backup support for your primary sump pump
- Engineered, glass-filled thermoplastic vortex impellers
- Lockable battery box, Battery sold separate
Dimensions and Measurements
Cord Length | 10 ft. |
Discharge Diameter | 1, 1.5 in. |
Flow Rate (GPM) | 43 |
Maximum Head Height | 19 ft. |
Product Weight | 30 lbs. |
Dimensions and Measurements
Cord Length | 10 ft. |
Discharge Diameter | 1, 1.5 in. |
Flow Rate (GPM) | 43 |
Maximum Head Height | 19 ft. |
Product Weight | 30 lbs. |
Included Components
Battery Included | No |
Included Components
Battery Included | No |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Material Shaft | Steel |
Submersible | Yes |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Material Shaft | Steel |
Submersible | Yes |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.7 |
Backup GPH @ 0 feet | 2680 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2680 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.3 |
Motor RPM | 1550 |
Starting Amps | 25.9 Amps |
Voltage | 12 |
Electrical and Operational Information
Amperage | 9.7 |
Backup GPH @ 0 feet | 2680 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2680 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.3 |
Motor RPM | 1550 |
Starting Amps | 25.9 Amps |
Voltage | 12 |
Warranty and Product Information
Collection | Model 508 |
Commercial Warranty | 5 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 |
Warranty and Product Information
Collection | Model 508 |
Commercial Warranty | 5 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 |
