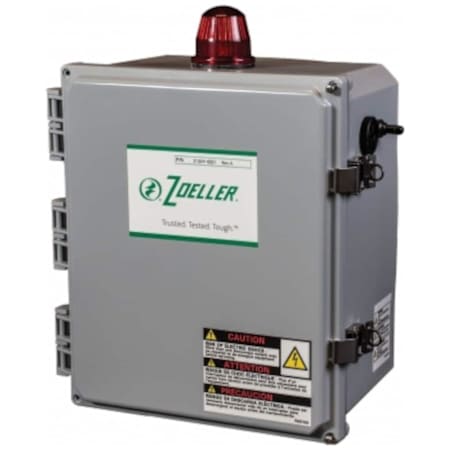

Zoeller Pivot Duplex Alternator Control Panel with Alarm 115/200/230V 1PH (15-20A) Indoor/Outdoor NEMA 4X Enclosure

PLEASE NOTE - REPLACES Zoeller 10-1045

Features:

• Zoeller Pivot Alternator Duplex Control Panel (32334-0001)
  • For duplex pump applications in residential and commercial applications
  • Single Phase, 115/ 200 / 230V (15-20A Max)


• **Requires 3 or 4 Variable Level Float Switches (Not Included)**


• Alternating Mechanism
  • Runs the 1st pump, then runs the 2nd pump
  • Both pumps will run during a high-water event


• NEMA 4X Watertight Enclosure (12" x 10" x 6")
  • Allows for indoor and outdoor installations; -40°F - 140°F
  • Lockable latch for added security


• RED / AMBER / GREEN LEDs: For switch indicators, Pump Run, High Water, System Ready and HOA


• 360° Red Alarm Beacon: Provides a visual alert when a high water situation occurs


• High Water Alarm: 95 dBA Audible alarm so you can also hear when an event occurs


• User-Friendly Controls
  • Hand/Off/Auto Toggle switch
  • Alarm Test/Silence switch


• Adjustable Settings
  • "Smart" or "Standard" float logic
  • See spec sheet and install instructions for more details


• Auxiliary Dry Contact and USB Port: Allows for connection for remote alarm devices/dialers etc.


• 120V Control Circuit and Alarm
  • Circuit breaker protection
  • Max Alarm and Control Circuit Power Consumption: 40W


• Includes (4) Enclosure Mounting Brackets


• 5-Year Limited Warranty
