Zoeller
Zoeller 1HP Cast Iron Sewage Pump (2") with Vertical Float Switch (230V) N/A

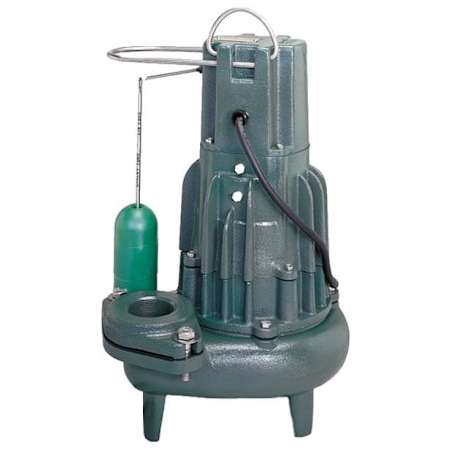

Zoeller 1HP Cast Iron Sewage Pump (2") with Vertical Float Switch (230V)

Model: 284-0003
|
Item: bci5171482

$1,275.75
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • 230V Automatic Submersible Sewage / Ejector Pump: Ideal for average to above average sewage removal

  • Durable Cast Iron Design w/ Powder Coated Epoxy Finish: Provides a corrosion resistant switch case, base, motor and pump housing

  • 1 HP Thermally Protected PSC Motor w/ Auto-Reset (230V): Oil-filled and hermetically sealed to prevent overheating

  • Reliable, Float Operated, (NEMA 6) Vertical Mechanical Switch: Provides an 'On' point of 15-1/4" and 'Off' point of 5-1/4"

  • Non-Clogging Cast Iron Vortex Impeller: Capable of passing 2" spherical solids

  • Carbon/Ceramic Rotary Face Shaft Seal w/ SS Wetted Parts: Assures maximum protection for extended pump life

  • 2" NPT Standard Discharge: Optional flange available for 3" discharge (Please Inquire)

  • 10' Power Cord

  • Industry Leading Quality Control - Pressure Tested After Assembly

  • *Note* Max Operating 130F and 35' Shutoff Head: UL listed cord with 3-prong plug

  • 3-Year Warranty

  • SS Screws, Guard, Handle, Arm and Seal To Minimize Corrosion

Additional Zoeller Links

Manufacturer Resources

Install SheetSpecification Sheet

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
2 in.
Flow Rate (GPM)
179

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
2 in.
Flow Rate (GPM)
179

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Pump Material
Cast Iron
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Pump Material
Cast Iron
Submersible
Yes

Electrical and Operational Information

Amperage
8.9
Horsepower
1
Voltage
230

Electrical and Operational Information

Amperage
8.9
Horsepower
1
Voltage
230

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
