Zoeller
Zoeller 1/2 HP Cast Iron Sewage Pump with Piggyback Tether Float (15' Cord) (230V) N/A
Zoeller 1/2 HP Cast Iron Sewage Pump with Piggyback Tether Float (15' Cord) (230V) N/A
Alternate Image

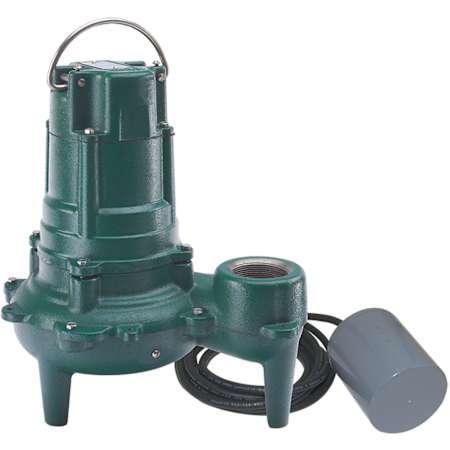

Zoeller 1/2 HP Cast Iron Sewage Pump with Piggyback Tether Float (15' Cord) (230V)

Model: 267-0054
|
Item: bci5171502

$651.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Zoeller Model BE267 Sewage Pump is designed to remove raw sewage or effluent in residential sewage or septic system applications. The professional-grade, 1/2 HP Model 267 is known for its dependability. The BE267 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank. The Model 267’s switch case, motor housing, and pump housing are each constructed of cast iron. The pump’s identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 267 is able to withstand the demands of residential sewage ejector applications. Every pump is submerged in water and tested to its published performance curve, ensuring it meets Zoeller's expectations and delivers peace of mind right-out-of-the-box.

Features:

  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Nonautomatic pump with piggyback variable level float switch which allows you to adjust the on / off level for optimal runtime
  • Corrosion resistant engineered plastic vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
  • The single piggyback float switch turns a nonautomatic pump into an automatic pump and also allows you to isolate the pump from the switch making it easier to troubleshoot issues in the field
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

Specifications:

  • Horsepower: 0.5
  • Impeller Material: Engineered Plastic
  • Discharge Diameter: 2"
  • Maximum Head Height: 20.5 ft
  • Amperage: 4.7
Additional Zoeller Links

Dimensions and Measurements

Cord Length
15 ft.
Discharge Diameter
2 in.
Flow Rate (GPM)
115
Maximum Head Height
20.5 ft.

Dimensions and Measurements

Cord Length
15 ft.
Discharge Diameter
2 in.
Flow Rate (GPM)
115
Maximum Head Height
20.5 ft.

Characteristics and Features

Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material Shaft
Steel
Pump Material
Cast Iron
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material Shaft
Steel
Pump Material
Cast Iron
Submersible
Yes

Electrical and Operational Information

Amperage
4.7
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725
RPM
1725
Voltage
230

Electrical and Operational Information

Amperage
4.7
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725
RPM
1725
Voltage
230

Warranty and Product Information

Collection
Model 267
Commercial Warranty
3 Year
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Year

Warranty and Product Information

Collection
Model 267
Commercial Warranty
3 Year
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Year
